MMS-A-Y8 - Countersunk Mounting Magnet

Description
Technical
Downloads

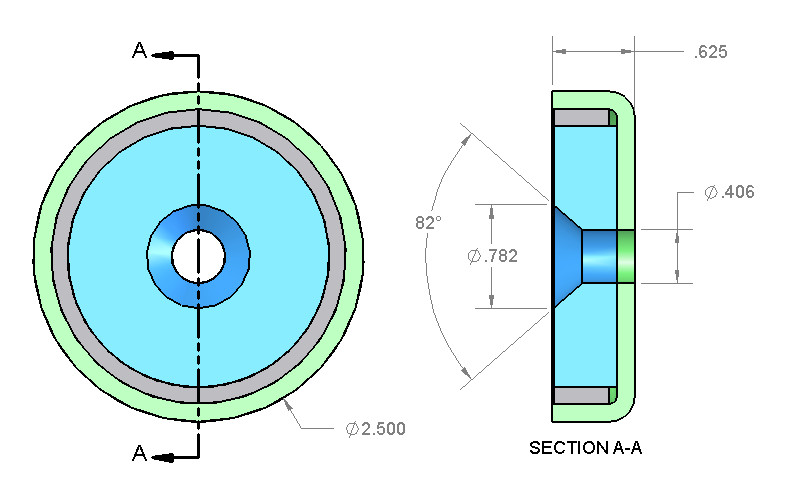

Dimensions:
    Diameter= 2 1/2" (2.50")
    Hole Size= 3/8" Screw
    Height= 5/8" (0.500")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 11.66 oz. (330.4 g)
Pull Force: 254.0 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

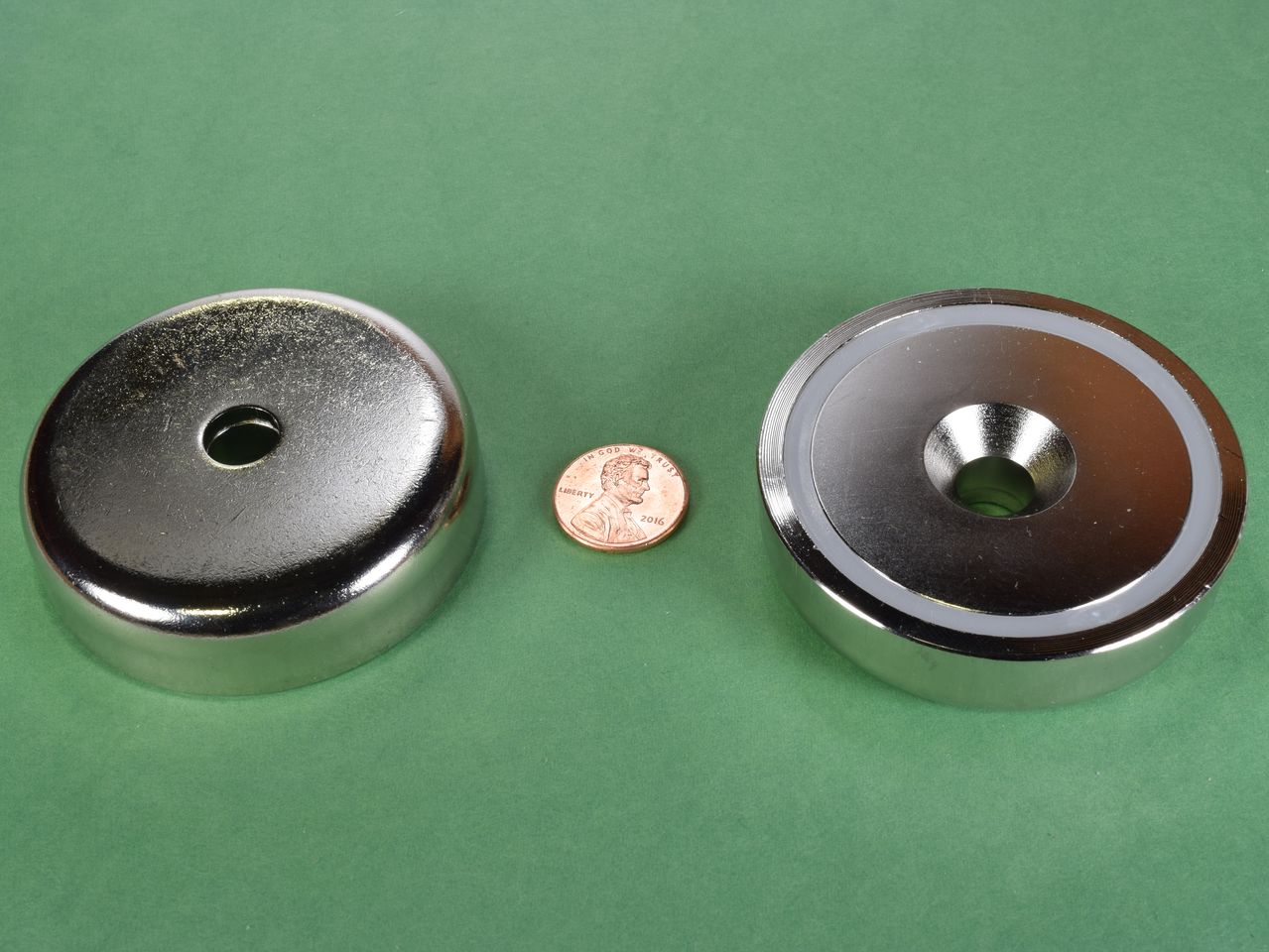

The MMS-A style is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $43.09

Quantity:

Qty:

Price ea.	Qty
$43.09	1
$42.13	2
$41.17	3-4
$40.22	5-6
$39.26	7-9
$38.30	10-24
$37.34	25-49
$36.39	50-99
$35.43	100-249
$34.47	250-499
For pricing at higher order quantities, please email us!
