MMS-B-Y0

Description
Technical
Downloads

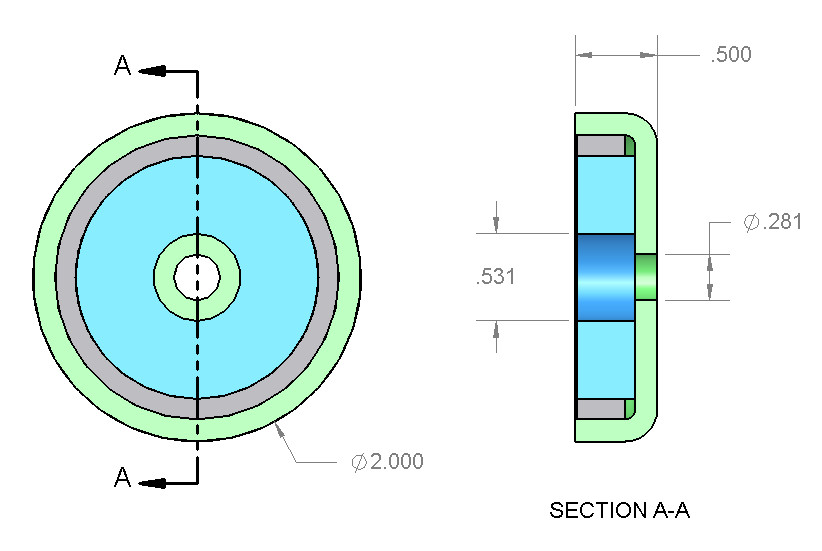

Dimensions:
    Diameter = 2" (2.00")
    Hole Size = 1/4" Screw
    Height = 1/2" (0.500")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 5.699 oz. (161.6 g)
Pull Force: 158.8 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

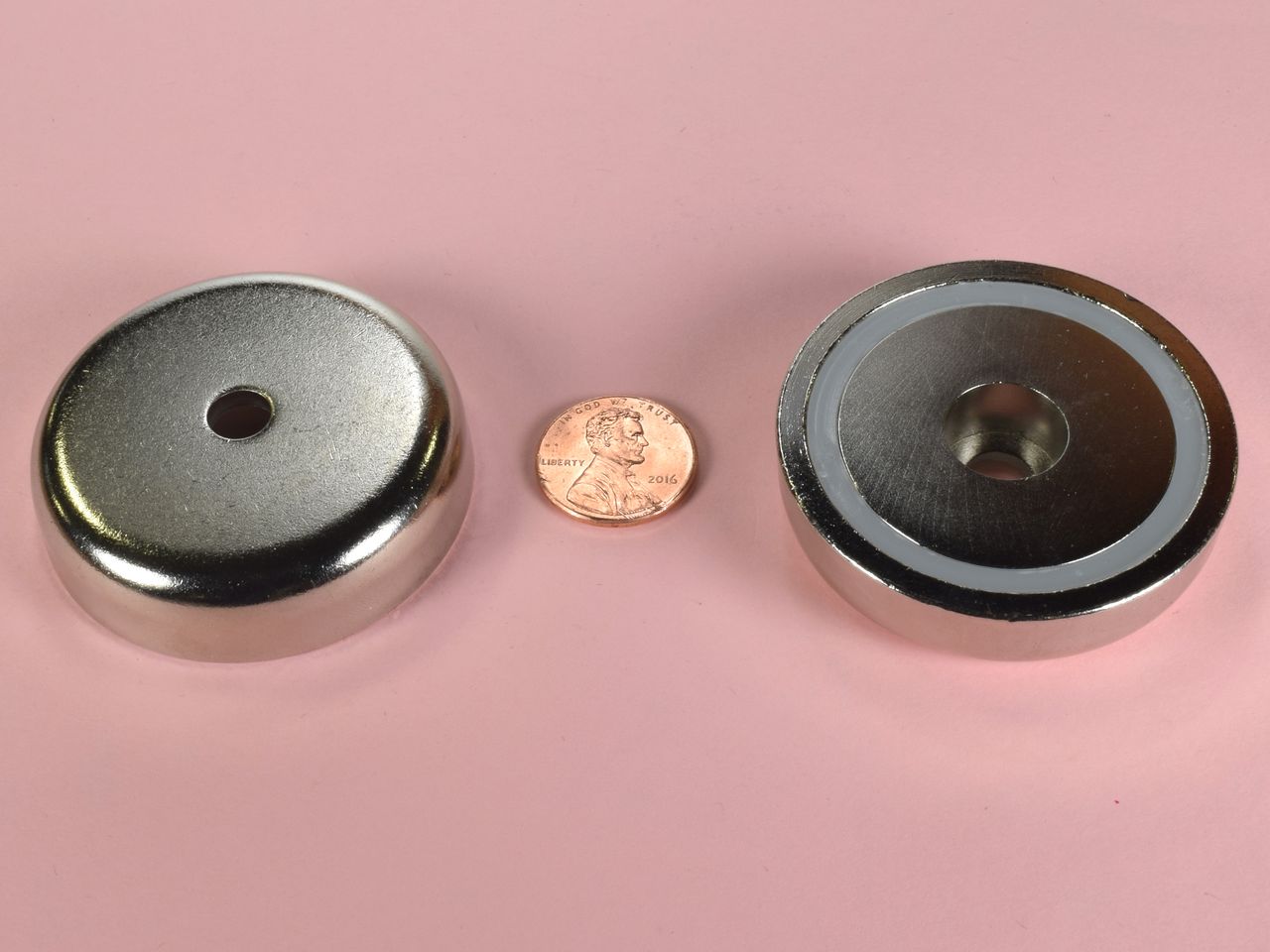

The MMS-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $19.71

Quantity:

Qty:

Price ea.	Qty
$19.71	1
$19.27	2
$18.83	3-4
$18.40	5-9
$17.96	10-24
$17.52	25-49
$17.08	50-99
$16.65	100-249
$16.21	250-499
$15.77	500-999
For pricing at higher order quantities, please email us!
