MMS-C-X0

MMS-C-X0

MMS-C-X0

Description
Technical
Downloads

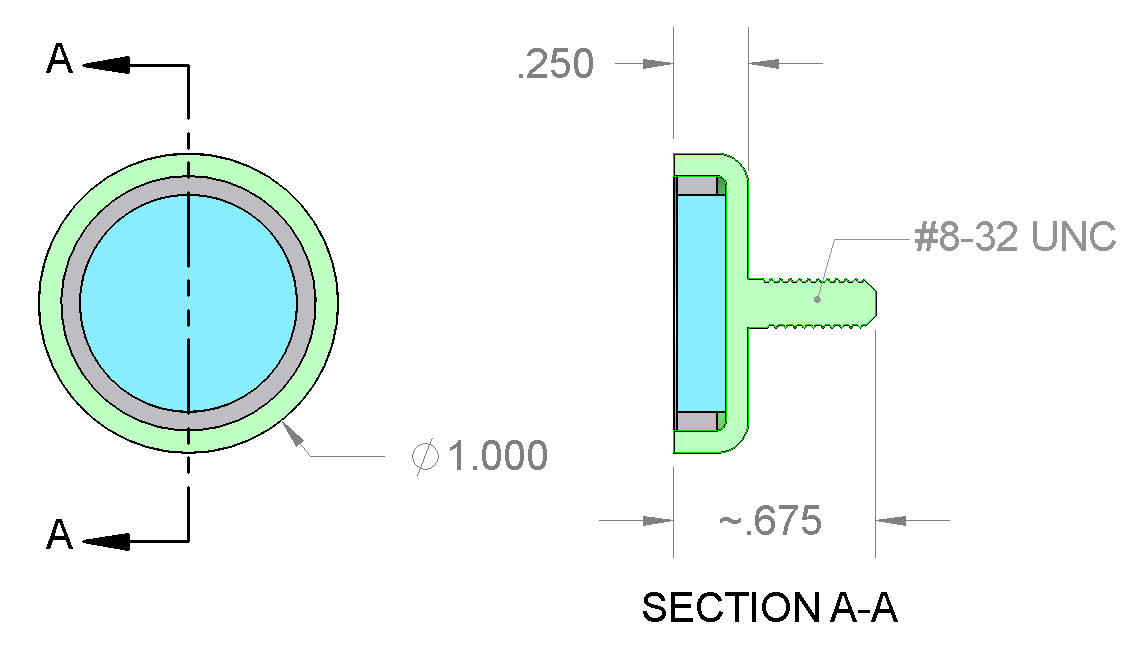

Dimensions:
    Diameter = 1" (1.00")
    Threaded Male Stud = #8-32 UNC 2A
    Height = 1/4" (0.250")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.810 oz. (22.96 g)
Pull Force: 40.64 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

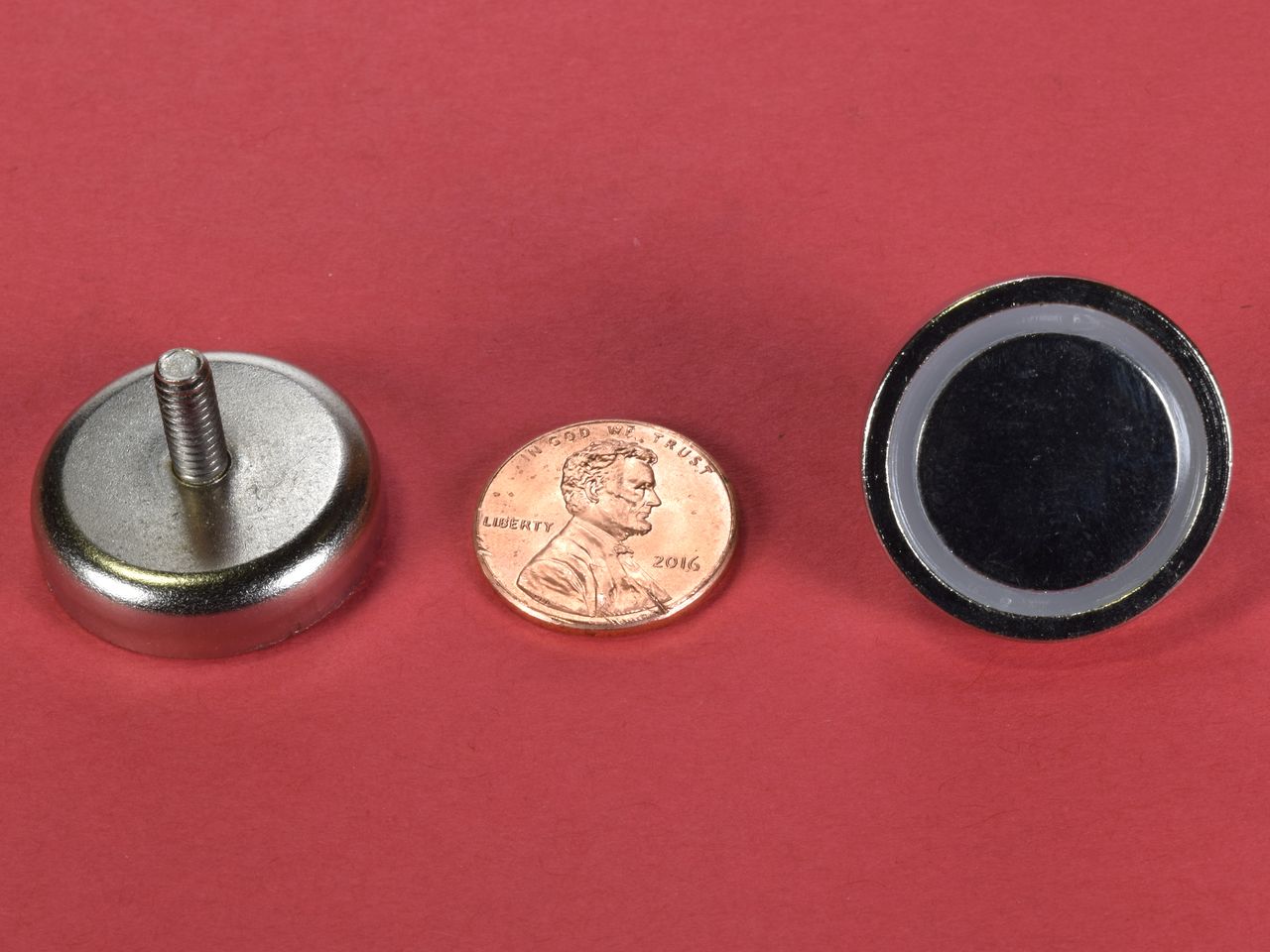

The MMS-C style is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $4.30

Quantity:

Qty:

Price ea.	Qty
$4.30	1-4
$4.20	5-9
$4.11	10-24
$4.01	25-49
$3.92	50-99
$3.82	100-249
$3.73	250-499
$3.63	500-999
$3.54	1000-2499
$3.44	2500-4999
For pricing at higher order quantities, please email us!
