MMS-H-A

MMS-H-A

MMS-H-A

Description
Technical
Downloads

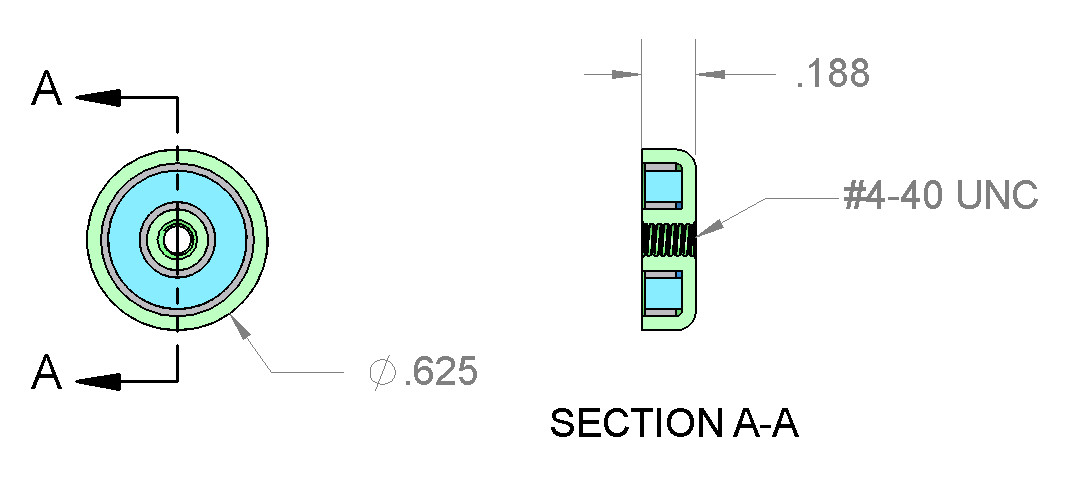

Dimensions:
    Diameter = 5/8" (0.625")
    Internal Thread Size = #4-40 UNC 2B
    Height = 3/16" (0.187")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.217 oz. (6.17 g)
Pull Force: 9.45 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

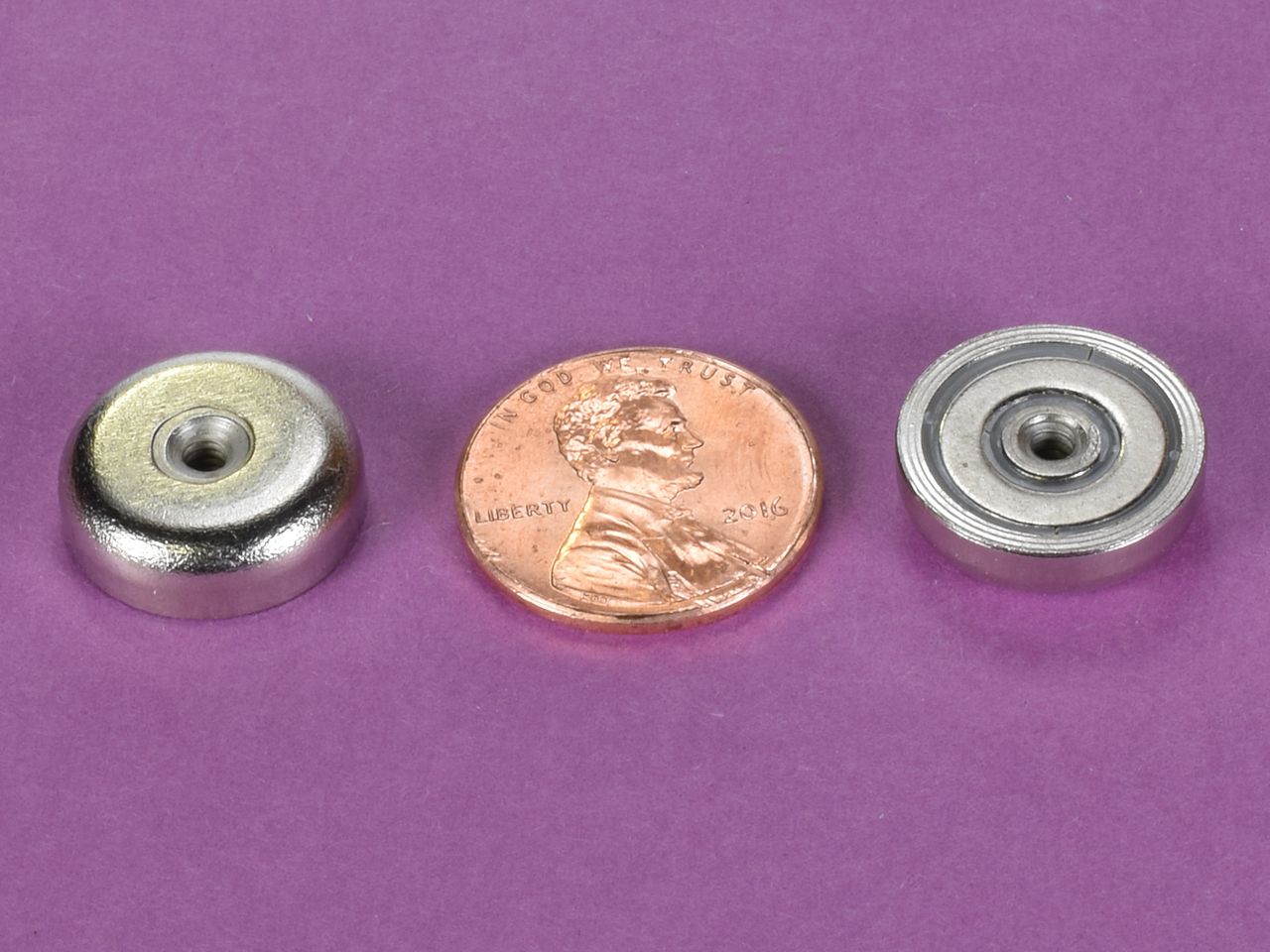

The MMS-H style is a flat mounting magnet with an internal thread in the center. These unique mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $2.87

Quantity:

Qty:

Price ea.	Qty
$2.87	1-4
$2.81	5-9
$2.74	10-24
$2.68	25-49
$2.62	50-99
$2.55	100-249
$2.49	250-499
$2.43	500-999
$2.36	1000-2499
$2.30	2500-4999
For pricing at higher order quantities, please email us!
