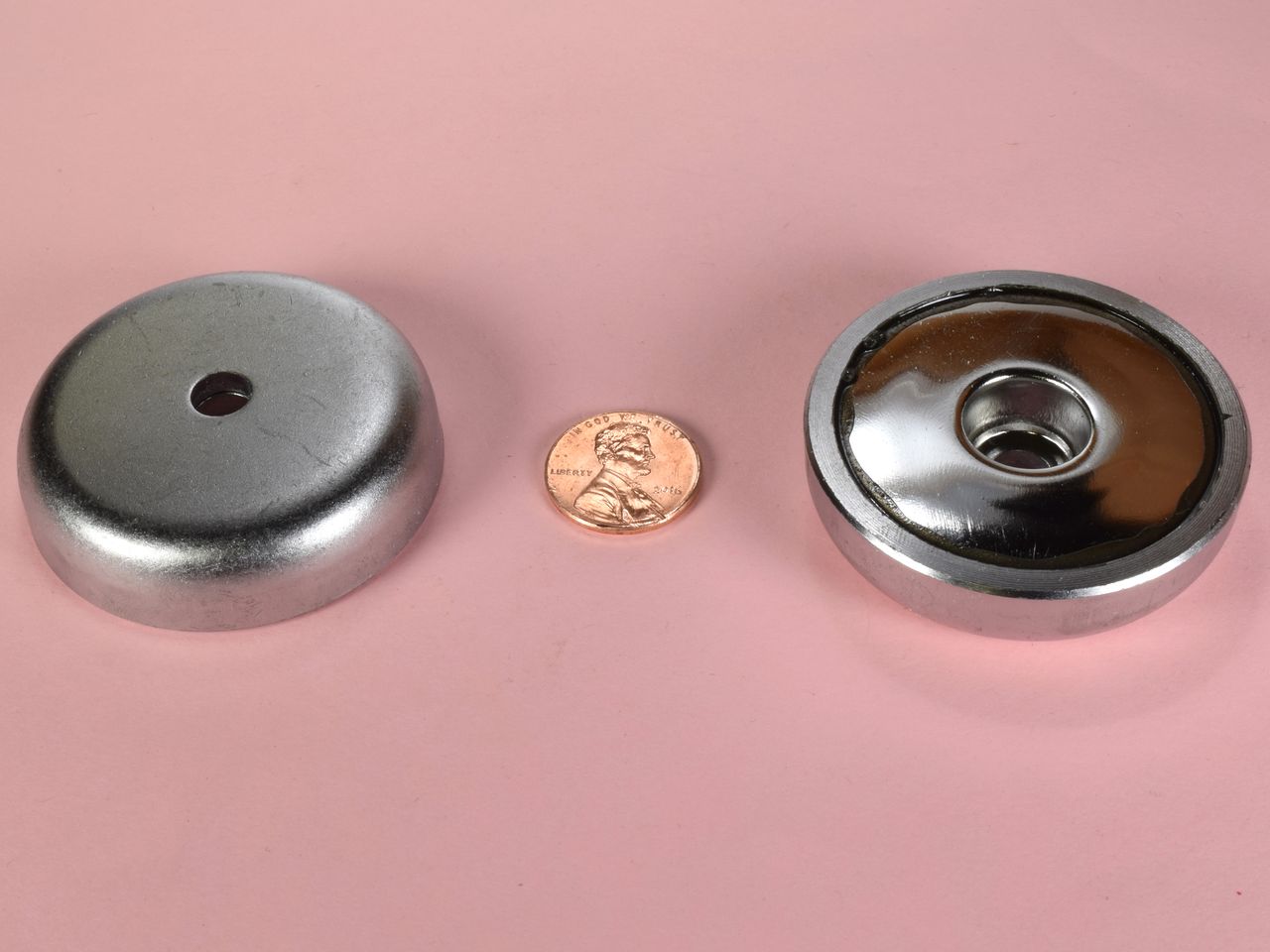

MMWR-B-Y0 - Neodymium Stainless Steel Mounting Magnet

mmwr-b-y0-neodymium-stainless-steel-mounting-magnet--thumbnail-1mmwr-b-y0-neodymium-stainless-steel-mounting-magnet--thumbnail-2
$27.59
-
+
Buy more, Save more!

Quantity based discounts

Price ea.QtyDiscount
$27.59 1
$26.9822%
$26.363-44%
$25.755-67%
$25.147-99%
$24.5210-2411%
$23.9125-4913%
$23.3050-9916%
$22.68100-24918%
$22.07250-49920%
Email us for even bigger discounts on higher order quantities
  • product description icon   Description
  • product technical icon   Technical
  • product download icon   Downloads

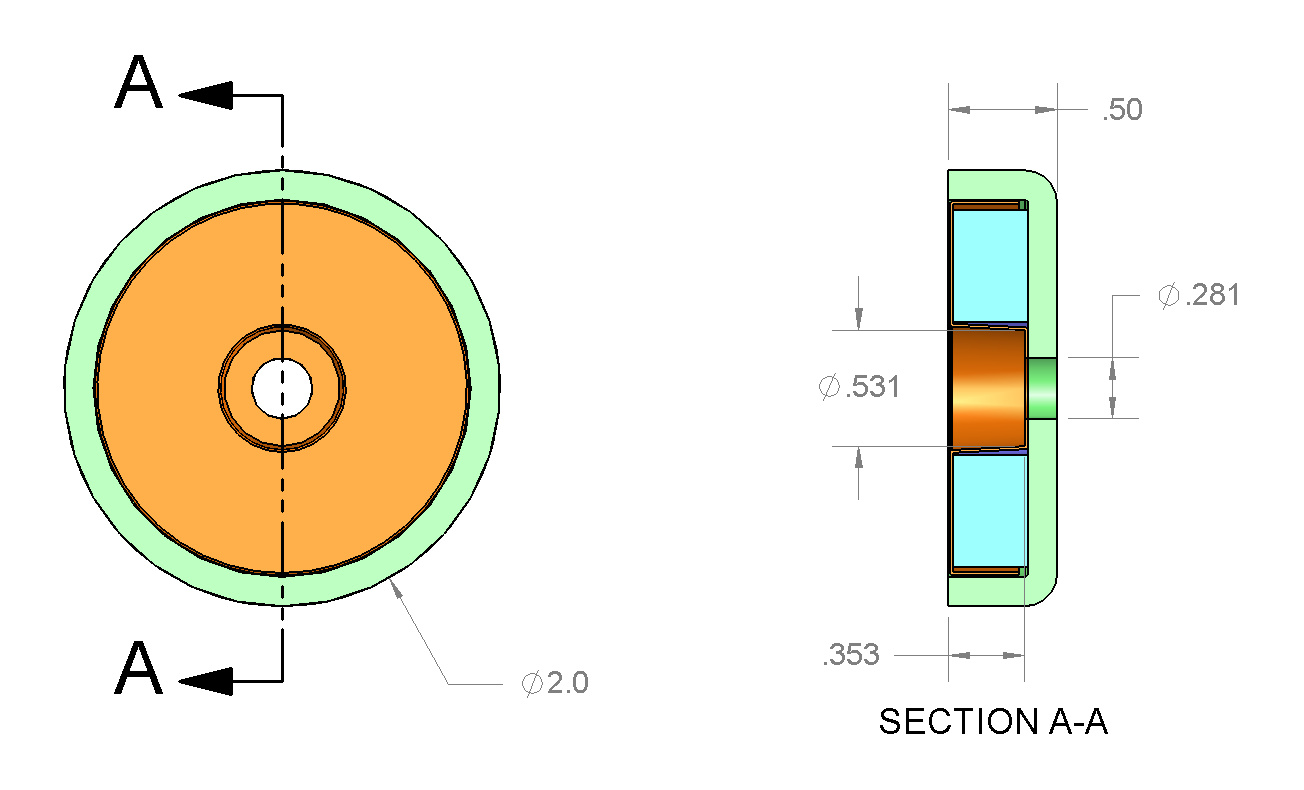

  • Dimensions:
        Diameter = 2" (2.0")
        Hole Size = 1/4" Screw
        Height = 1/2" (0.5")
  • Material: Assembly of:
        Stainless steel cup,
        Stainless steel cover &
        NdFeB magnet, grade N42
  • Plating/Coating: None (stainless steel construction)
  • Weight: 5.44 oz. (154 g)
  • Pull Force: 90 lbs
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

This stainless steel mounting magnet is a new, water resistant design available exclusively at K&J Magnetics.  It allows neodymium mounting magnets to be used in wet environments, where occasional contact with moisture is expected.

Most of our other Mounting Magnets are made with nickel plated magnets that are exposed, with a nickel plated steel cup that the magnet sits in.  In outdoor use where magnets can occasionally get wet, both the magnet and the steel cup can corrode or rust.  The exposed portions of this sealed magnet are all stainless steel, which protects the internal magnet from corrosion.

While not quite as magnetically strong as non-stainless mounting magnets like the MMS-B-Y0, this product is a great, water resistant solution.

Note that the appearance of these magnets is not as shiny as our nickel plated products.

Magnetic Field Click this link for a depiction of the magnetic field.
BH Curves View B-H curves for this magnet.

SpecSheet Click this link to download a PDF Specification Sheet.
Drawing Click this link to download a PDF drawing of this product.
Cert Click this link to download a Certificate of Compliance for this product.
RoHS Click this link to download a RoHS Statement of Compliance for this product.
CMRT Click this link to download a Conflict Minerals Reporting Template (CMRT).
Origin Click this link to download a Certificate of Origin for this product.
REACH Click this link for a REACH compliance statement.
