![](/images/magdir/R414CL.png)
- Dimensions: 1/4"od x (1/10" x 1/21") x 1/4"
- Tolerances: ±0.004" x ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni-Au (Gold)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.0405 oz. (1.15 g)
- Pull Force: 2.89 lbs
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

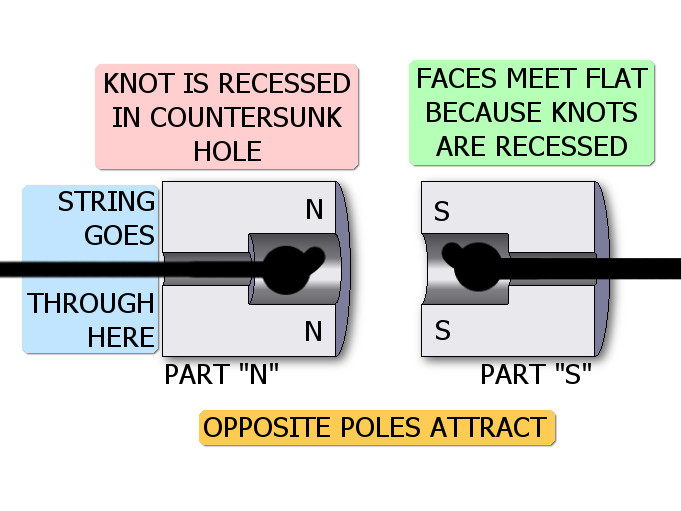

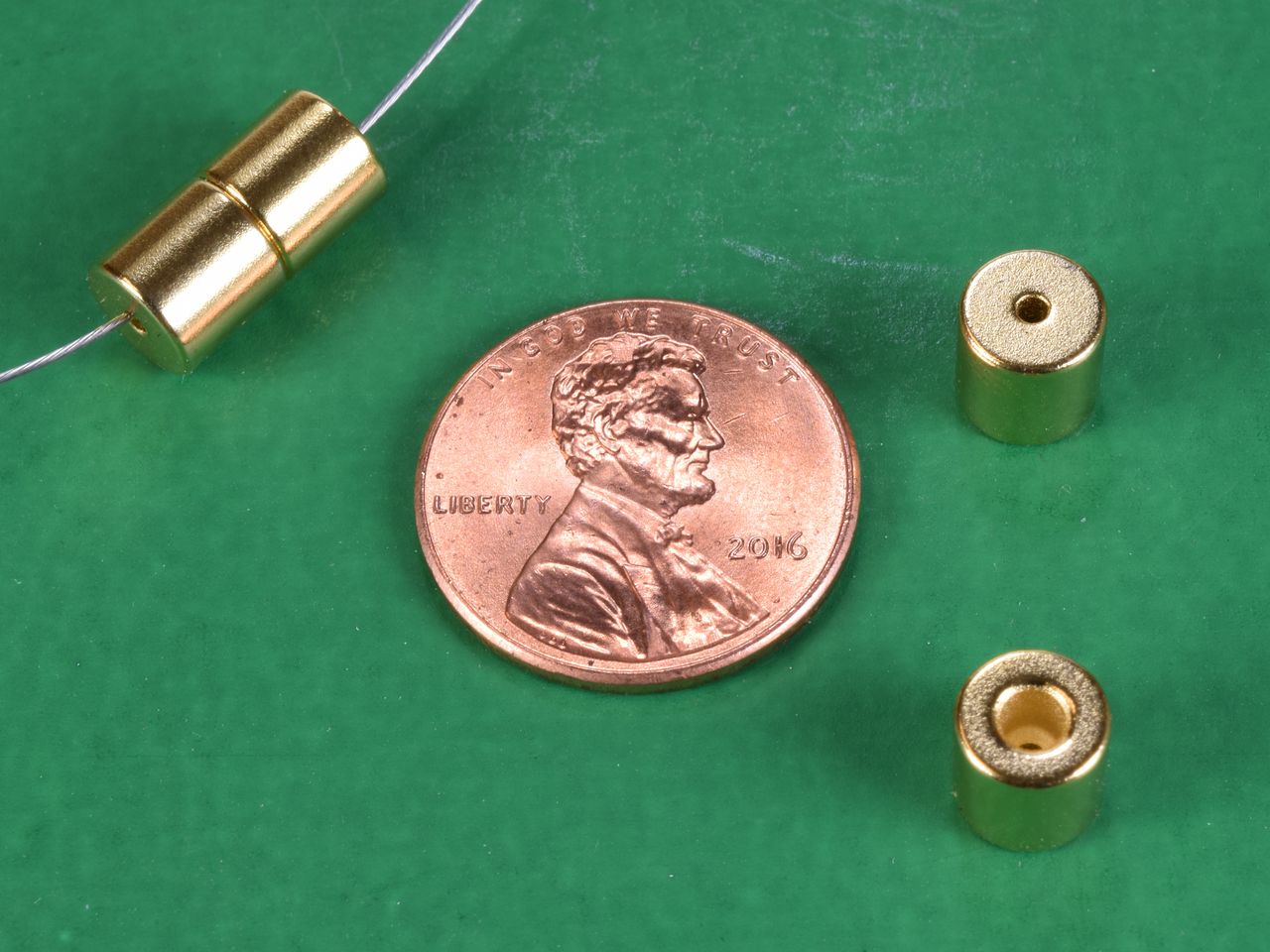

The rings are sold in pairs because there are two different magnetization directions on the rings to allow them to work as clasps. One of the magnets in the pair has the north pole on the counersunk hole side and the other has the south pole on that side. This allows the two faces to meet flat, as a knot fits inside the countersunk hole in the ring. The clasps are gold plated for a shiny, gold finish. The small hole is 1/21" and the large hole is 1/10".
![]() | Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
![]() | Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
![]() | Pull Force, Case 3 vs. distance: Magnet to Magnet. |
![]() | Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
![]() | Click here for a depiction of the magnetic field. |
![]() | View B-H curves for this magnet. |
![]() | Click here to download a PDF Specification Sheet. |
![]() | Click here to download a PDF drawing of this product. |
![]() | Click here to download a Certificate of Compliance for this product. |
![]() | Click here to download a RoHS Statement of Compliance for this product. |
![]() | Click here to download a Material Safety Data Sheet (MSDS) for this product. |
![]() | Click here to download a Certificate of Origin for this product. |
![]() | Click here for a REACH compliance statement. |
![]() | Click here to download a .STEP file (3D model). |
![]() | Click here to download an .IGS file (3D model). |
