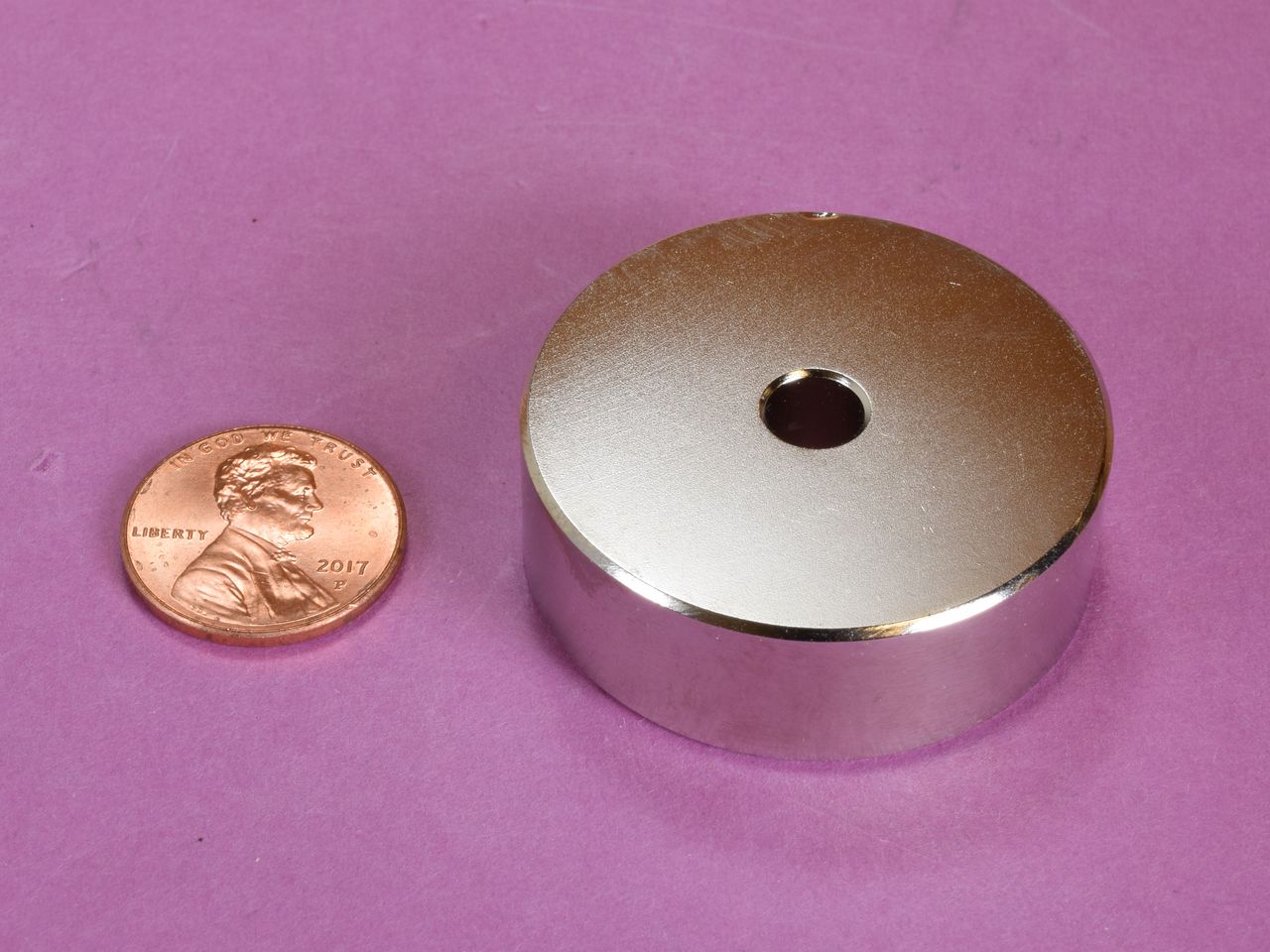

RX848 - Neodymium Ring Magnet

Description
Technical
Downloads

Dimensions: 1 1/2" od x 1/4" id x 1/2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 3.73 oz. (105.6 g)
Pull Force, Case 1: 71.48 lbs
Pull Force, Case 2: 117.7 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The RX848 is uniquely sized and very strong! The 1/2" thickness and the wide surface area of this magnet make for a powerful ring that is perfectly suited for use in many specialized scientific, industrial and medical applications.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $22.86

Quantity:

Qty:

Price ea.	Qty
$22.86	1
$22.35	2
$21.84	3-4
$21.34	5-6
$20.83	7-9
$20.32	10-24
$19.81	25-49
$19.31	50-99
$18.80	100-249
$18.29	250-499
For pricing at higher order quantities, please email us!
