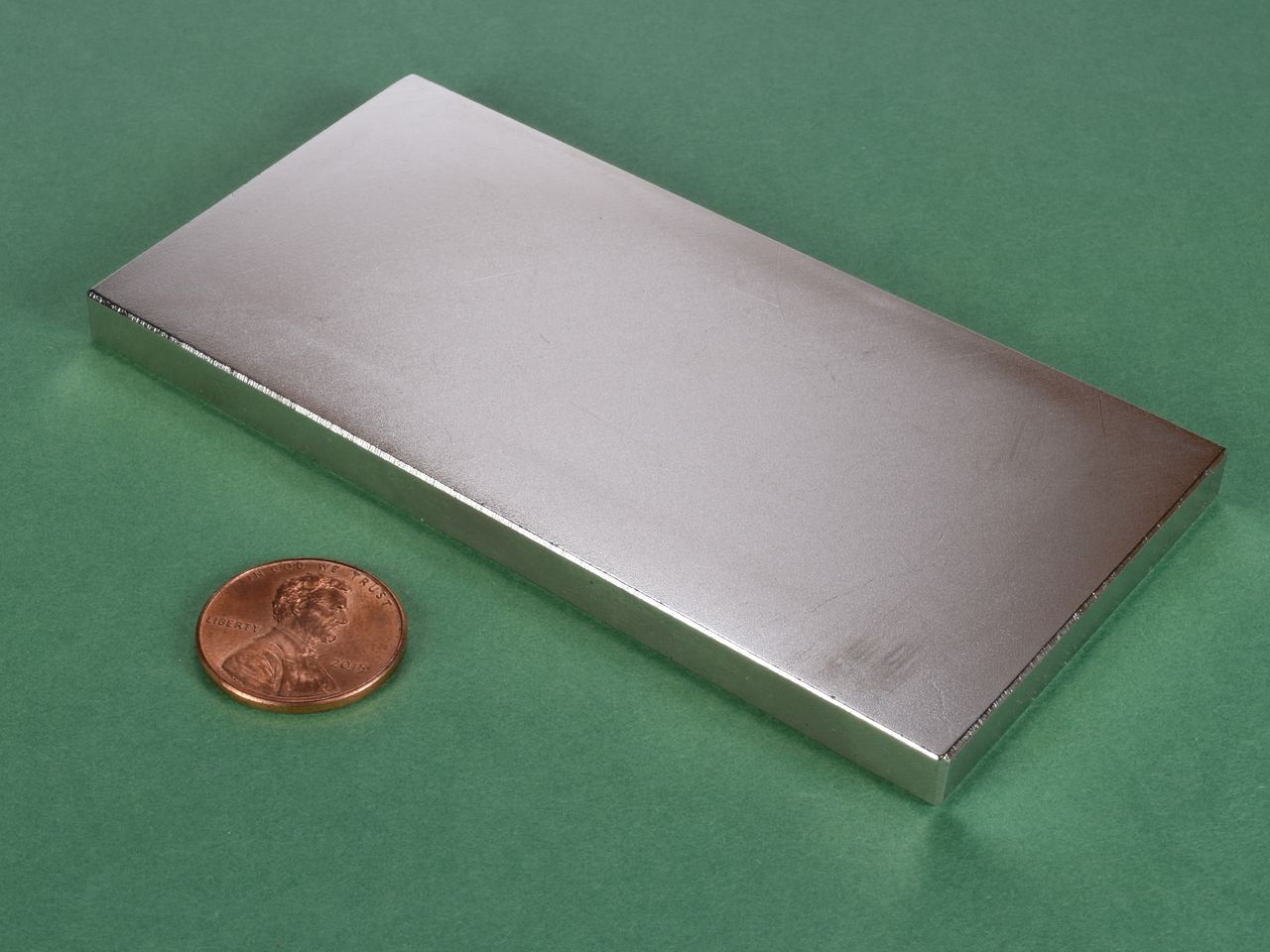

BZX0Y04 - Neodymium Block Magnet

• Dimensions: 4" x 2" x 1/4" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 8.67 oz. (245.8 g)
• Pull Force, Case 1: 73.33 lbs
• Pull Force, Case 2: 349.6 lbs
• Surface Field: 1152 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

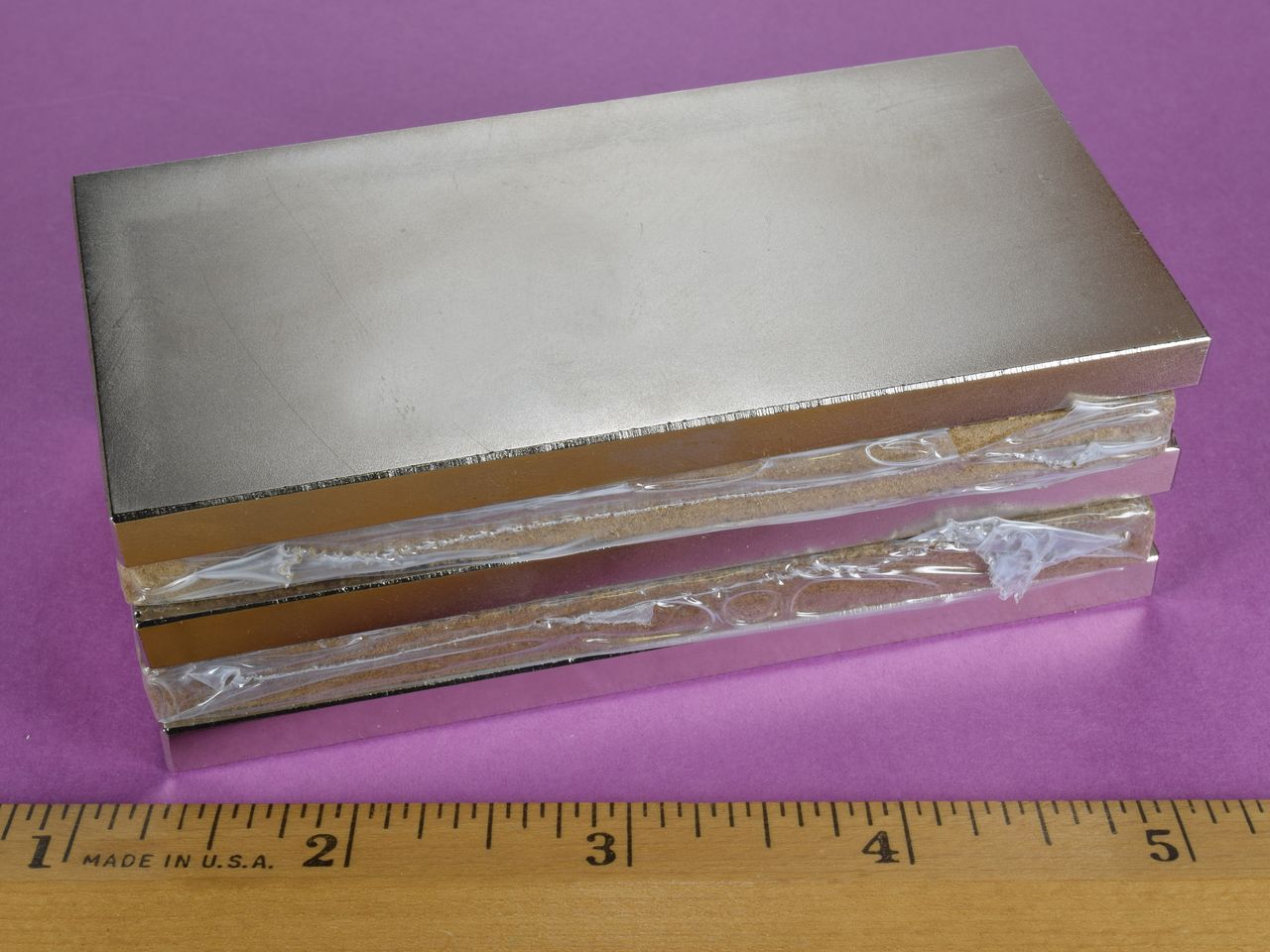

These large blocks are favorites of magicians and illusionists.  However, the BZX0Y04 must be handled with extreme caution. They are incredibly powerful and should only be purchased by users familiar with the proper handling of large neodymium magnets. Two of these stuck together are nearly impossible to separate by hand. They can pinch and cause physical harm if they are not handled with care and respect.

You must read and understand our Neodymium Magnet Safety Page before ordering these magnets.  You must also agree to our Terms and Conditions prior to purchasing.  THESE ARE DANGEROUS!

GROUND SHIPPING ONLY on this item.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).
