SB6C4-IN - Stepped Block Magnet

Description
Technical
Downloads

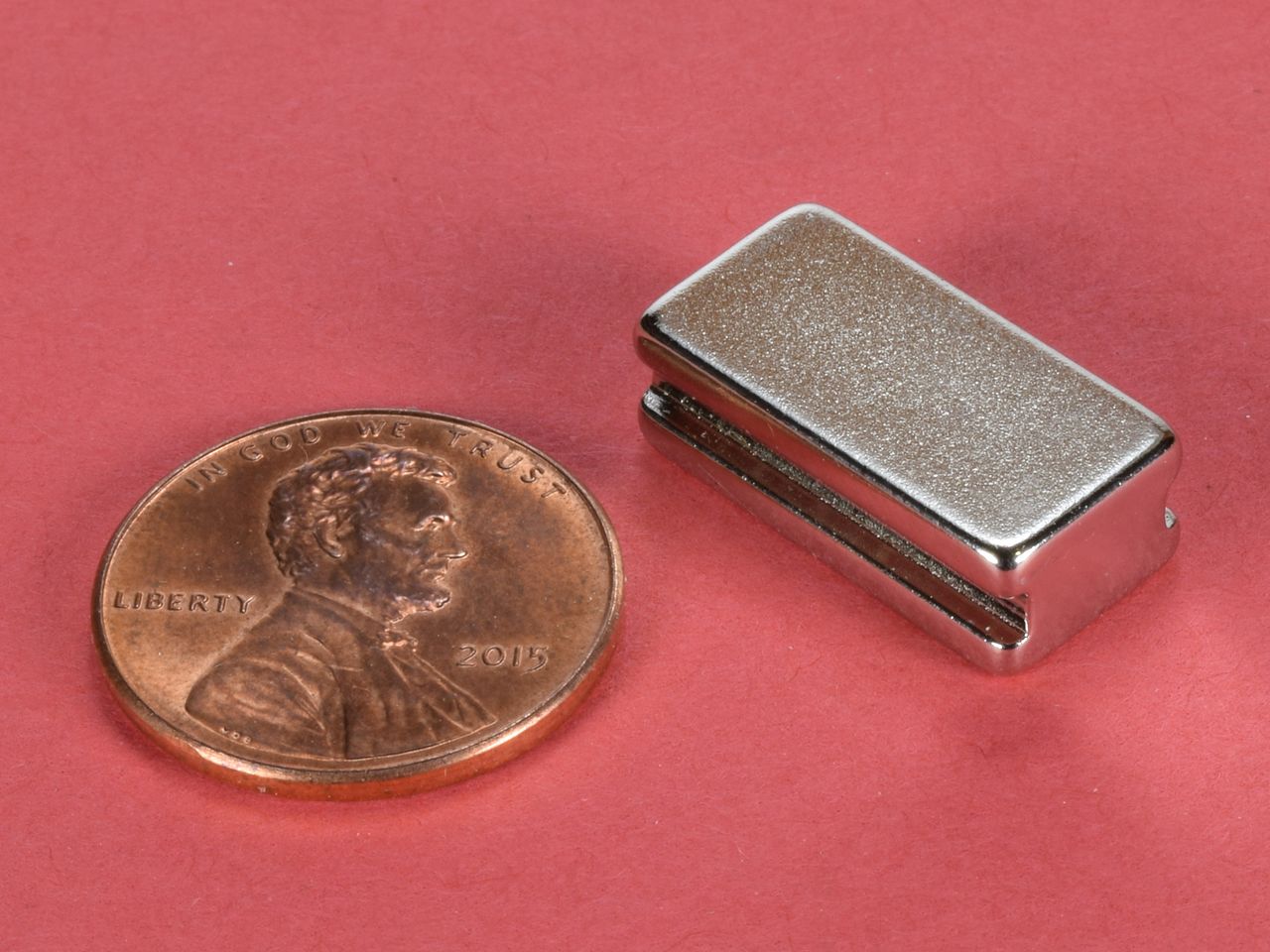

Dimensions: 3/8" length x 3/4" width x 1/4" thick , with step IN
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.276 oz. (7.83 g)
Pull Force, Case 1: 13.01 lbs
Pull Force, Case 2: 21.95 lbs
Surface Field: 4528 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

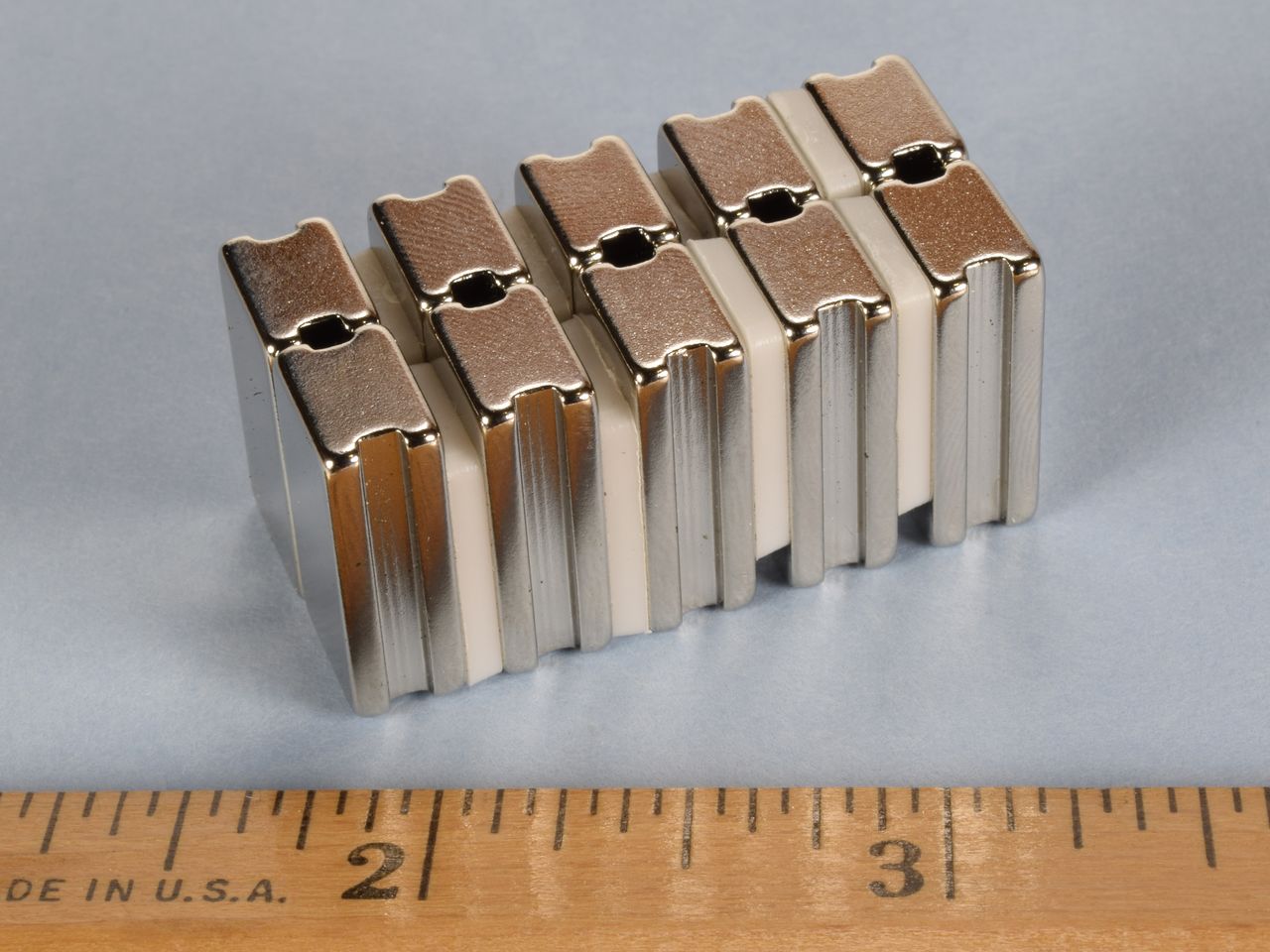

These stepped block magnets combine great holding power with inset steps on two sides. This often asked-for feature enables the use of many methods of securing the magnet in your assembly. For those trying to avoid the use of adhesives, this magnet is the answer.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $2.53

Quantity:

Qty:

Price ea.	Qty
$2.53	1-4
$2.47	5-9
$2.42	10-24
$2.36	25-49
$2.30	50-99
$2.25	100-249
$2.19	250-499
$2.13	500-999
$2.08	1000-2499
$2.02	2500-4999
For pricing at higher order quantities, please email us!
