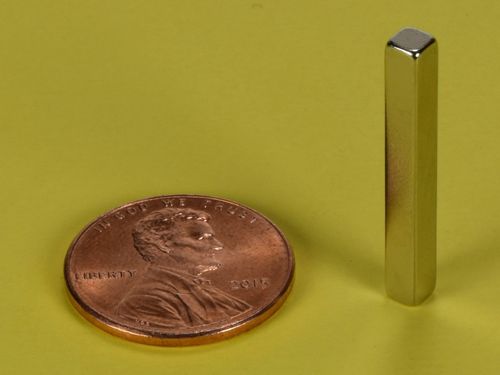

1/8 x 1/8 x 1 Inch Neodymium Rare Earth Bar Magnet N42 PN: B22X0

• Dimensions: 1/8" x 1/8" x 1" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.068 oz. (1.92 g)
• Pull Force, Case 1: 1.23 lbs
• Pull Force, Case 2: 1.23 lbs
• Surface Field: 6584 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

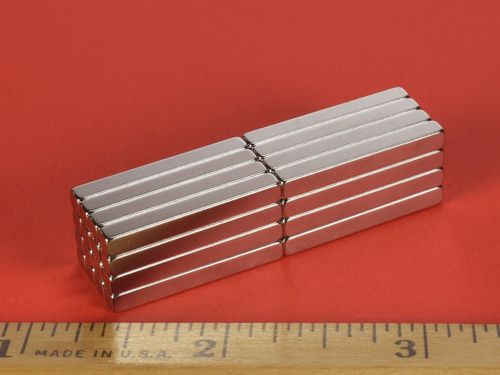

These small blocks are magnetized through the 1" thickness.  The poles are located on the small 1/8" x 1/8" faces.  Easy to grab, but still provides a strong hold.

This long magnetization direction can be a great choice for use with reed switches.
