7/8 x 7/8 x 1/8 Inch Neodymium Rare Earth Block Magnet N42 PN: BEE2

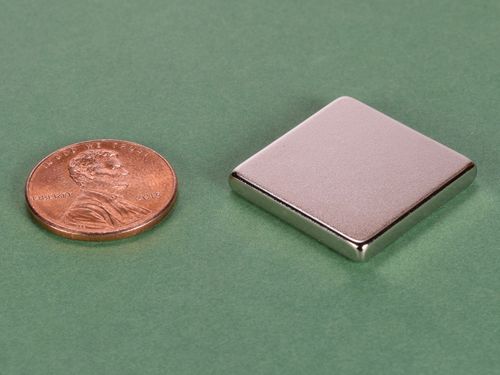

bee2-neodymium-rare-earth-block-magnet--thumbnail-1

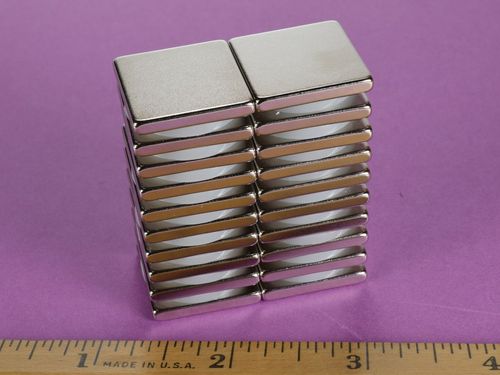

bee2-neodymium-rare-earth-block-magnet--thumbnail-2

$3.91

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$3.91	1-4
$3.83	5-9	2%
$3.74	10-24	4%
$3.65	25-49	7%
$3.56	50-99	9%
$3.48	100-249	11%
$3.40	250-499	13%
$3.30	500-999	16%
$3.22	1000-2499	18%
$3.13	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 7/8" x 7/8" x 1/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.415 oz. (11.8 g)
Pull Force, Case 1: 12.47 lbs
Pull Force, Case 2: 55.95 lbs
Surface Field: 1653 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

These 1/8" thick blocks are prefect for applications with tight tolerances where the final product can not exceed one inch. Don't let their size fool you, lots of strength in a small form. Great for art projects, crafts, experiments... the possibilities are endless.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
