> D2X8 - Neodymium Rare Earth Cylinder/Rod Magnet

1/8 x 1 1/2 Inch Neodymium Rare Earth Cylinder/Rod Magnet N42 PN: D2X8

d2x8-neodymium-rare-earth-cylinder/rod-magnet

d2x8-neodymium-rare-earth-cylinder/rod-magnet--thumbnail-1

d2x8-neodymium-rare-earth-cylinder/rod-magnet--thumbnail-2

$1.73

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$1.73	1-9
$1.69	10-24	2%
$1.66	25-49	4%
$1.61	50-99	7%
$1.57	100-249	9%
$1.54	250-499	11%
$1.50	500-999	13%
$1.45	1000-2499	16%
$1.42	2500-4999	18%
$1.38	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 1/8" dia. x 1 1/2" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0798 oz. (2.26 g)
Pull Force, Case 1: 0.91 lbs
Pull Force, Case 2: 0.91 lbs
Surface Field: 6594 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

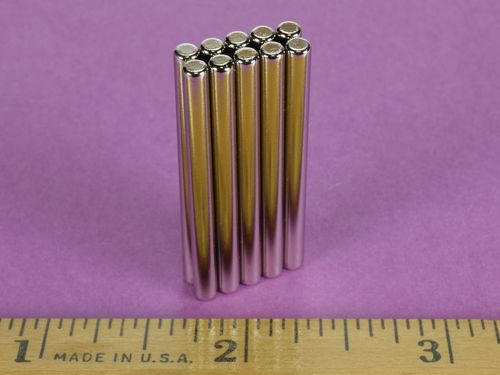

These long, thin rods can be quite useful. They are very long for such a small diameter. Easy to handle, an interesting magnet.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
