> DX0X8 - Neodymium Rare Earth Cylinder/Rod Magnet

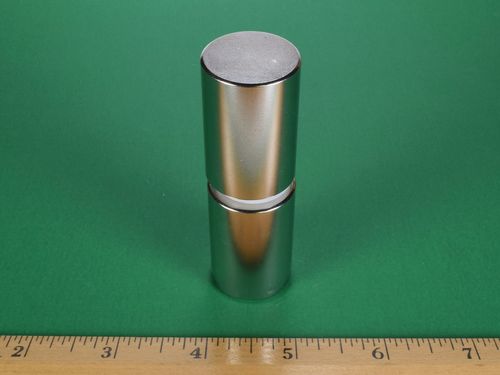

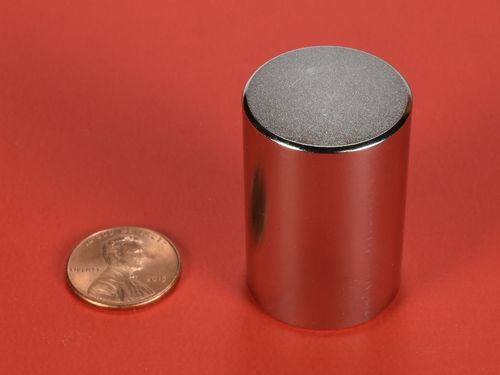

1 x 1 1/2 Inch Neodymium Rare Earth Cylinder/Rod Magnet N42 PN: DX0X8

dx0x8-neodymium-rare-earth-cylinder/rod-magnet

dx0x8-neodymium-rare-earth-cylinder/rod-magnet--thumbnail-1

dx0x8-neodymium-rare-earth-cylinder/rod-magnet--thumbnail-2

$36.78

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$36.78	1
$35.96	2	2%
$35.15	3-4	4%
$34.33	5-6	7%
$33.52	7-9	9%
$32.69	10-24	11%
$31.87	25-49	13%
$31.06	50-99	16%
$30.24	100-249	18%
$29.42	250-499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1" dia. x 1 1/2" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 5.11 oz. (144.8 g)
Pull Force, Case 1: 66.00 lbs
Pull Force, Case 2: 66.00 lbs
Surface Field: 6261 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

These large cylinders are very powerful and should only be handled by people experienced with the power of neodymium magnets. The DX0X8 is very strong and must be handled with caution. Due to their length, it is not terribly difficult to get a decent grip on them in order to pull them apart. But don't let that fool you, the DX0X8 still packs quite a punch.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
