2 x 1/2 x 0.16 Inch Neodymium Rare Earth Magnetic Cabinet Door Latch N42 (2 Pair Pack) ML-S-Y0

Price ea.	Qty	Discount
Buy more, Save more! Quantity based discounts
$6.04	1-4
$5.90	5-9	2% Off
$5.77	10-24	4% Off
$5.63	25-49	7% Off
$5.50	50-99	9% Off
$5.36	100-249	11% Off
$5.23	250-499	13% Off
$5.09	500-999	16% Off
Email us for even bigger discounts on higher order quantities

ML-S-Y0 Specifications

Magnetization Direction: The direction through which the magnet is magnetized. See our Magnetization Directions page for more details.
Magnetized Through Thickness
Size: Size is the physical dimensions of the product using the standard unit of measure inches.

2 x 0.5 x 0.16 Inch ( Length x Width x Thickness )
Metric Size: Metric size is the physical dimensions of the product in metric millimeters.

50.8 x 12.7 x 4.06 mm ( Length x Width x Thickness )
Pull Force 1: Pull force case 1 represents a magnet attracting to a thick steel plate. Learn more about Magnet Pull Force Case 1.

20 lb (9.07 kg)
Grade:
Grade N

Min: -238°F (-150°C) Max: 176°F (80°C)

Hover over grades for temp info:

N

NM

NH

NSH

NUH

NEH

NAH
N42
Max Operating Temp: Maximum operating temperature, also known as maximum service temperature, is the temperature at which the magnet may be exposed to continuously with no significant long-range instability or structural changes. Learn more in our Temperature and Neodymium Magnets article.
176°F (80°C)
Material: This lists the name of the material each product is composed of.
Neodymium (NdFeb)
BH Max: BH max is the Maximum Energy Product at the point on the B/H Curve that has the most strength, expressed in MGOe (MegaGaussOersteds). When describing the grade of a neodymium magnet, this number is commonly referred to as the "N" number, as in Grade N52 magnets. Learn more about Bh max in our glossary.

42 MGOe
Tolerances: Dimensional tolerance specifies the allowed leeway for variations in manufacturing.
±0.1 in (2.5mm)
Weight: This is the weight of a single magnet in ounces and grams. Variety packs (with mixed sizes) show the overall weight.

1.5521 oz (44 g)
Br Max: Br max is also called "Residual Flux Density" and is when the magnetic induction remaining in a saturated magnetic material after the magnetizing field has been removed. This is the point at which the hysteresis loop crosses the B axis at zero magnetizing force, and represents the maximum flux output from the given magnet material. By definition, this point occurs at zero air gap, and therefore cannot be seen in practical use of magnet materials. Learn more about Br max in our glossary.

13,200 Gauss
Pack Size: The number of products included in quantity 1 when added to cart. A pair means 2 products and a pack is a group of multiple products. Some products have multiple pairs in a single pack. Please be careful when placing into cart.

2 Pair Pack
Color: The color of the coating or plating on the product.

Silver
Accessories: List of things included or not included with product.

Hardware included (8 screws)

Product Description

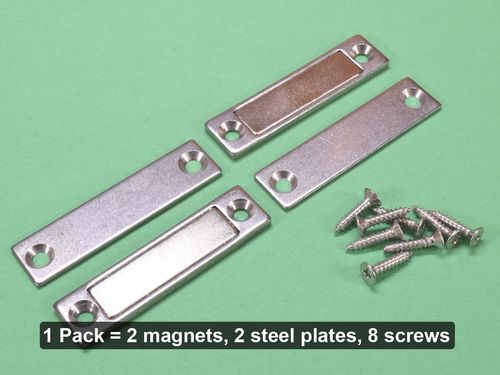

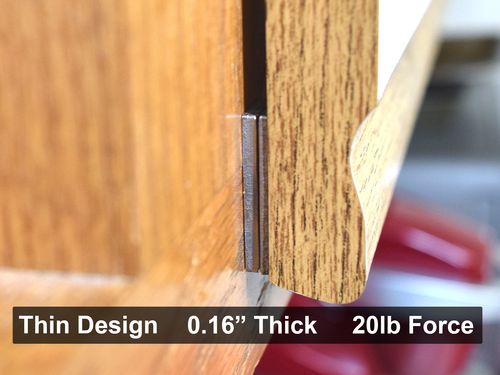

The ml-s-y0 magnetic cabinet door latch has a 2" length and 1/2", width and 0.16" thickness. Each pack comes with 2 magnetic catches, 2 steel plates for magnets to attach to and 8 screws for mounting. These magnetic latches have a high size to strength ratio with a pull force of 20lb while having a very thin profile.

The ML-S-Y0 neodymium magnetic latch provides a compact, high-strength closure for cabinet doors, drawers, access panels, covers, enclosures, and other components that need to remain securely closed. Its small size and strong magnetic holding force make it a versatile choice for cabinetmakers, woodworkers, contractors, manufacturers, makers, and DIY projects where a simple, reliable magnetic catch is preferred over a mechanical latch. Magnetic latches provide quick, reusable closure without complicated moving parts and allow doors and panels to be easily opened when access is needed. They are well suited for cabinetry, woodworking, storage compartments, equipment enclosures, displays, fixtures, and residential, commercial, and industrial applications.

Common Applications

Kitchen & Bathroom Cabinets - Keeping kitchen and bathroom cabinet doors securely closed.
Cupboards & Storage Cabinets - Creating magnetic closures for cupboards and storage cabinets.
Furniture & Storage - Securing furniture doors, compartments, and storage spaces.
Closets & Wardrobes - Holding closet and wardrobe doors in the closed position.
Access Panels & Covers - Creating closures for access panels and removable covers.
Interior Doors & Panels - Securing lightweight interior doors and panels.
Cabinetry & Woodworking - Building custom cabinets, furniture, and woodworking projects.
Display Cases & Showcases - Adding magnetic catches to display cases and showcases.
Boxes & Cases - Creating closures for boxes, cases, and storage compartments.
Replacement Latches - Replacing worn or damaged cabinet catches and latches.
RV & Trailer Cabinetry - Adding magnetic closures to RV, trailer, and equipment cabinetry.
Custom & DIY Projects - Building custom doors, enclosures, and DIY storage projects.

Product Features

Secure Magnetic Closure - Magnetic attraction helps keep cabinet doors, panels, and other closures securely shut.
Easy Release - Opens with a simple pull without requiring a complicated mechanical latch mechanism.
Consistent Holding Force - Provides repeatable magnetic holding each time the door or panel is closed.
Simple Mechanical Installation - Mounts directly to cabinets, doors, frames, and other structures using appropriate fasteners.
Compact Design - Small size allows installation inside cabinets, frames, and other confined spaces.
Concealed Installation - Can be positioned inside a cabinet or behind a door for a clean appearance with minimal visible hardware.
Reusable Operation - Designed for repeated opening and closing without resetting or replacing the magnetic fastener.
Permanent Magnet - Remains magnetized without requiring electricity, batteries, or an external power source.
Rare Earth Neodymium Magnet - The strongest type of permanent magnet available, providing exceptional strength for its size.
