Magnetic Viewing Film MV43

Product Description

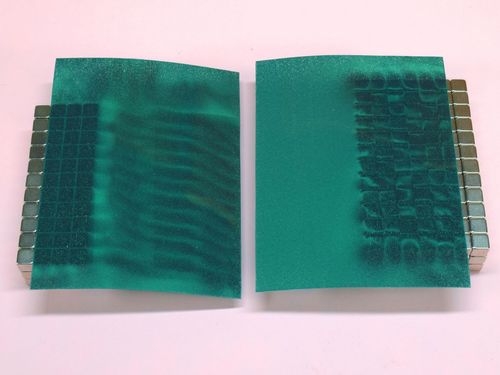

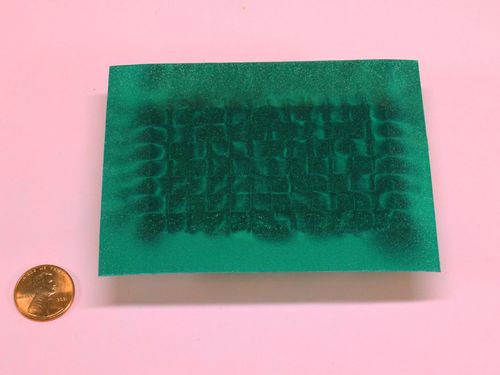

The mv43 is a 4" x 3" green magnetic viewing film designed to reveal the magnetic field patterns of permanent magnets. The film appears darker where magnetic field lines pass perpendicular to its surface and lighter where the field lines run parallel to the surface, making it easy to visualize pole locations, magnetization patterns, and differences in magnetic field orientation. The mv43 is reusable and RoHS compliant.

The mv43 magnetic viewing film provides a simple way to visually examine magnetic fields without electronic equipment. Placed over a permanent magnet or magnetic assembly, it can reveal pole locations, magnetization patterns, and differences in magnetic field orientation that are difficult to see otherwise. It is a useful tool for engineers, educators, students, makers, hobbyists, and technicians working with magnets and magnetic assemblies. The mv43 can be used for identifying magnetic poles and patterns, comparing magnetization directions, inspecting magnetic arrays, troubleshooting assemblies, classroom demonstrations, STEM projects, and magnetic field experiments.

Common Applications

• Magnetic Field Patterns - Visualizing magnetic field and pole patterns.
• Pole Transitions - Locating north-south pole transitions on magnets.
• Magnetization Patterns - Comparing different magnetization patterns.
• Multipole Assemblies - Inspecting multipole and complex magnetic assemblies.
• Classroom & Laboratory Education - Demonstrating magnetic fields in classrooms and laboratories.
• STEM & Science Projects - Creating STEM projects and science demonstrations.
• Flexible Magnets - Examining magnetic strips, sheets, and flexible magnets.
• Motors & Magnetic Components - Checking pole arrangements in motors and magnetic components.
• Magnet Comparison - Comparing magnetic patterns between different magnets.
• Field Distribution - Demonstrating how magnetic fields vary across a surface.
• Product Development & Prototyping - Inspecting magnets during product development and prototyping.
• Interactive Magnetic Displays - Creating interactive magnetic field demonstrations and exhibits.

Product Features

• Visualizes Magnetic Fields - Reveals magnetic field patterns that cannot normally be seen with the naked eye.
• Shows Magnetic Pole Locations - Helps identify where magnetic poles and transitions occur across a magnet's surface.
• Green Visual Display - Magnetic field variations appear as visible light and dark patterns in the viewing film.
• Instant Field Indication - Produces a visible response when placed near a magnet without requiring electronic equipment.
• Reusable Design - Can be used repeatedly to inspect different magnets and magnetic assemblies.
• No Electrical Power Required - Displays magnetic field patterns without batteries, wiring, or external power.
• Flexible Film Construction - Thin material can be positioned against or near a variety of magnet shapes and surfaces.
• Useful for Comparing Magnetization Patterns - Makes differences in pole arrangements and magnetic configurations easier to observe.
• Non-Destructive Inspection - Allows magnetic patterns to be viewed without modifying or damaging the magnet.
• Simple Magnetic Visualization Tool - Provides an easy way to explore magnetic fields without specialized electronic instruments.
