3/8 x 3/8 x 3/8 Inch Neodymium Rare Earth Cube Magnet N42 PN: B666-03PA

• Dimensions: 3/8" x 3/8" x 3/8" (- 3/32" hole) Hole parallel to magnetization direction
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.206 oz. (5.84 g)
• Pull Force, Case 1: 9.44 lbs
• Pull Force, Case 2: 10.68 lbs
• Surface Field: 5294 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

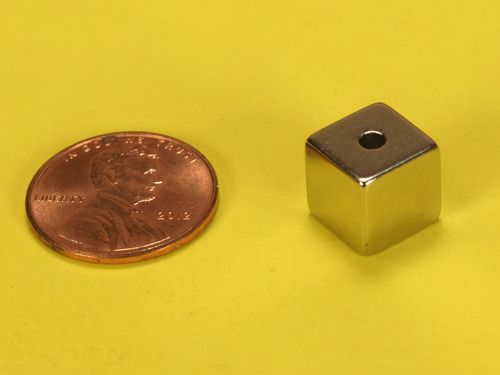

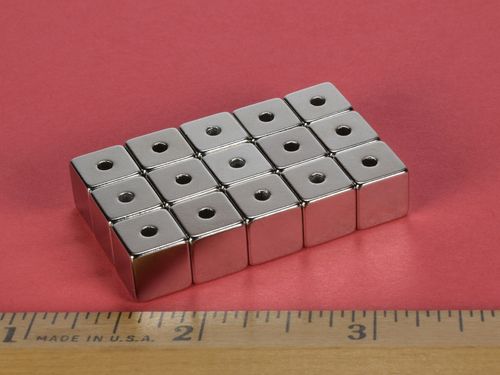

These magnets are like the B666-03PE, but have the holes parallel to the magnetization direction. These 3/8" cubes have a 3/32" hole through the center which is parallel to the magnetization direction. This means that the poles are located on two opposing sides with the holes. Great for applications where you need to tie a string through a magnet. These amazing cubes have thousands of uses.



	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
