> B664 - Neodymium Rare Earth Block Magnet

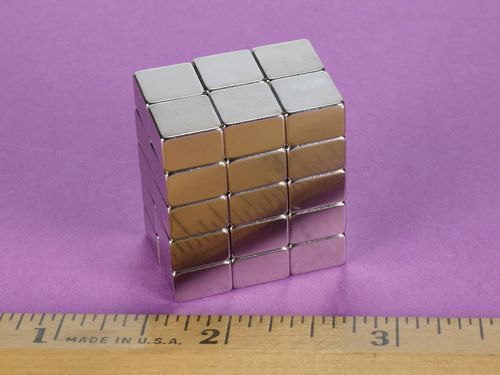

3/8 x 3/8 x 1/4 Inch Neodymium Rare Earth Block Magnet N42 PN: B664

b664-neodymium-rare-earth-block-magnet--thumbnail-1

b664-neodymium-rare-earth-block-magnet--thumbnail-2

$1.54

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$1.54	1-9
$1.50	10-24	3%
$1.46	25-49	5%
$1.44	50-99	6%
$1.40	100-249	9%
$1.37	250-499	11%
$1.33	500-999	14%
$1.31	1000-2499	15%
$1.27	2500-4999	18%
$1.24	5000-9999	19%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 3/8" x 3/8" x 1/4" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.152 oz. (4.32 g)
Pull Force, Case 1: 8.41 lbs
Pull Force, Case 2: 11.83 lbs
Surface Field: 5053 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The B664 is a great general purpose magnet because of its flat shape and great strength. Customers frequently use them in craft projects where they need a strong hold with a magnet that is easy to grasp.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
