3/16 x 3/16 x 1/2 Inch Neodymium Rare Earth Bar Magnet N42 PN: B338

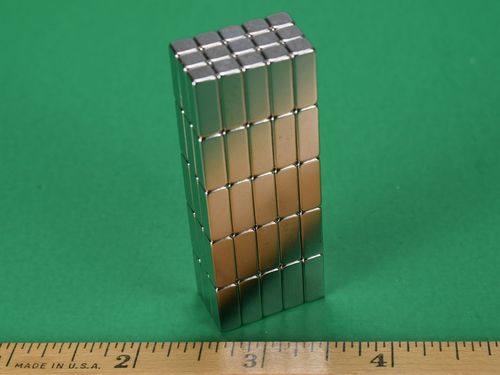

3/16 x 3/16 x 1/2 Inch Neodymium Rare Earth Bar Magnet N42 --thumbnail-1

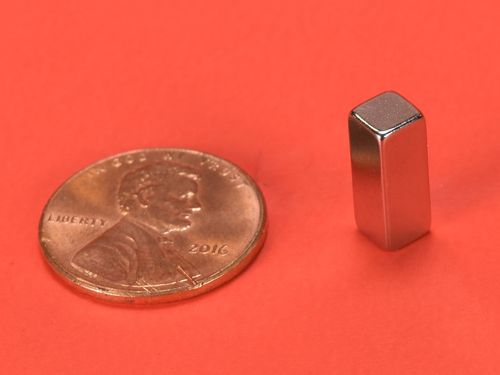

3/16 x 3/16 x 1/2 Inch Neodymium Rare Earth Bar Magnet N42 --thumbnail-2

$0.97

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.97	1-24
$0.95	25-49	2%
$0.92	50-99	5%
$0.91	100-249	6%
$0.89	250-499	8%
$0.86	500-999	11%
$0.84	1000-2499	13%
$0.83	2500-4999	14%
$0.80	5000-9999	18%
$0.78	10000-24999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 3/16" x 3/16" x 1/2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.034 oz. (0.96 g)
Pull Force, Case 1: 2.78 lbs
Pull Force, Case 2: 2.86 lbs
Surface Field: 6457 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

These blocks are magnetized through the 1/2" length so the poles are on the small 3/16" x 3/16" ends. They are like a "square cylinder" and are useful for a wide array of applications. Unique size to add to our ever-expanding inventory.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
