> MM-H-20 - Neodymium Rare Earth Internal Thread Mounting Magnet

19.99 x 7 mm Neodymium Rare Earth Internal Thread Mounting Magnet N38 PN: MM-H-20

mm-h-20-neodymium-rare-earth-internal-thread-mounting-magnet

mm-h-20-neodymium-rare-earth-internal-thread-mounting-magnet--thumbnail-1

mm-h-20-neodymium-rare-earth-internal-thread-mounting-magnet--thumbnail-2

$4.25

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$4.25	1-4
$4.15	5-9	2%
$4.06	10-24	4%
$3.96	25-49	7%
$3.86	50-99	9%
$3.78	100-249	11%
$3.68	250-499	13%
$3.59	500-999	16%
$3.49	1000-2499	18%
$3.40	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

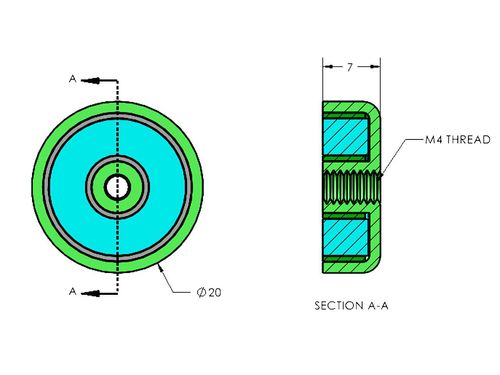

Dimensions:
Diameter = 20mm (.787")
Internal Thread Size = M4
Height =7mm (.276")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.48 oz. (13.47 g)
Pull Force: 14.1 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

The MM-H style is a flat mounting magnet with an internal thread in the center. These unique mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
