> MMS-B-C - Neodymium Rare Earth Counterbored Pot/Cup Mounting Magnet

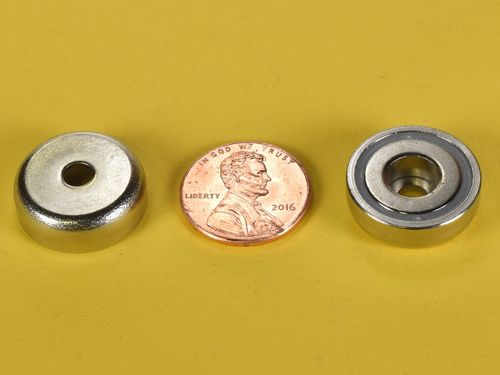

3/4 x 1/4 Inch Neodymium Rare Earth Counterbored Pot/Cup Mounting Magnet N42 PN: MMS-B-C

3/4 x 1/4 Inch Neodymium Rare Earth Counterbored Pot/Cup Mounting Magnet N42 --thumbnail-1

3/4 x 1/4 Inch Neodymium Rare Earth Counterbored Pot/Cup Mounting Magnet N42 --thumbnail-2

$3.32

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$3.32	1-4
$3.25	5-9	2%
$3.18	10-24	4%
$3.10	25-49	7%
$3.02	50-99	9%
$2.95	100-249	11%
$2.88	250-499	13%
$2.80	500-999	16%
$2.72	1000-2499	18%
$2.65	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

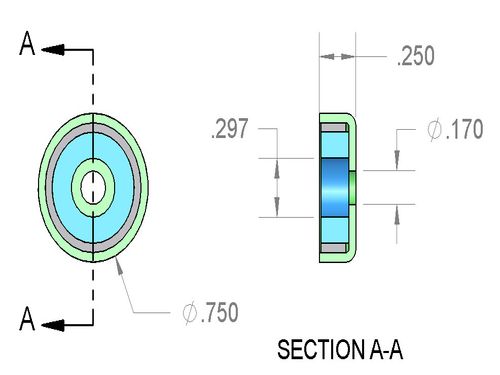

Dimensions:
    Diameter = 3/4" (0.75")
    Hole Size = #6 Screw
    Height = 1/4" (0.25")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.333 oz. (9.446 g)
Pull Force: 16.25 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The MMS-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
