> MM-B-16 - Neodymium Rare Earth Counterbored Mounting Magnet

16 x 5 mm Neodymium Rare Earth Counterbored Mounting Magnet N38 PN: MM-B-16

mm-b-16-neodymium-rare-earth-counterbored-mounting-magnet

mm-b-16-neodymium-rare-earth-counterbored-mounting-magnet--thumbnail-1

mm-b-16-neodymium-rare-earth-counterbored-mounting-magnet--thumbnail-2

$2.75

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.75	1-4
$2.69	5-9	2%
$2.63	10-24	4%
$2.57	25-49	7%
$2.51	50-99	9%
$2.44	100-249	11%
$2.38	250-499	13%
$2.32	500-999	16%
$2.26	1000-2499	18%
$2.20	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

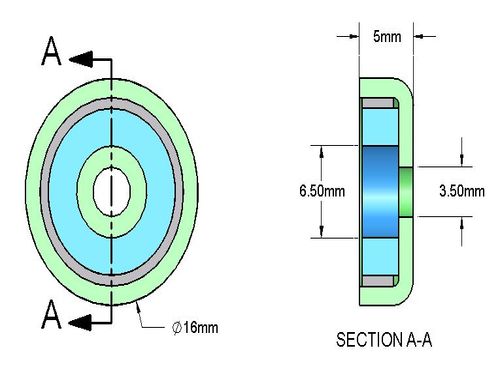

Dimensions:
    D=16mm (0.63")
    d1=3.5mm (0.14") (Sized for M3 screw)
    d2=6.5mm (0.26") (Straight counterbored hole)
    h=5mm (0.20")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.20 oz. (5.67 g)
Pull Force: 8.80 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

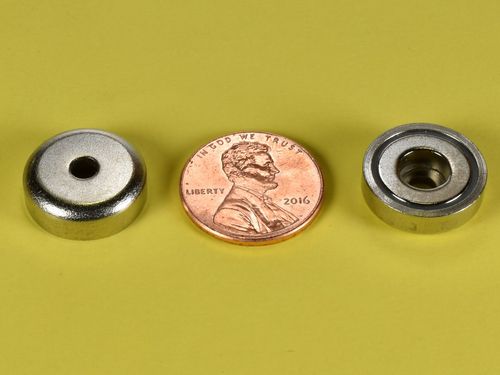

The MM-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
