MM-C-16 - Neodymium Male Stud Mounting Magnet

mm-c-16-neodymium-male-stud-mounting-magnet

mm-c-16-neodymium-male-stud-mounting-magnet--thumbnail-1

mm-c-16-neodymium-male-stud-mounting-magnet--thumbnail-2

$2.49

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.49	1-4
$2.43	5-9	2%
$2.38	10-24	4%
$2.32	25-49	7%
$2.27	50-99	9%
$2.21	100-249	11%
$2.16	250-499	13%
$2.10	500-999	16%
$2.05	1000-2499	18%
$1.99	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

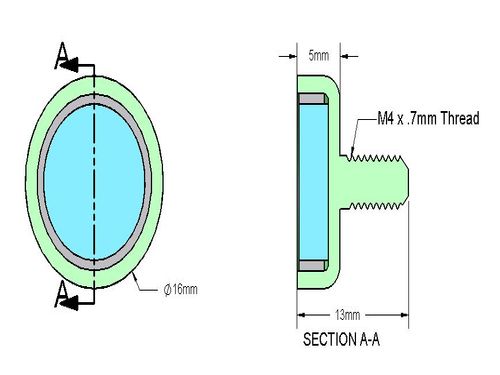

Dimensions:
    D=16mm (0.63")
    M=4mm (0.16") (M4 Coarse Male threaded stud)
    H=13mm (0.51")
    h=5mm (0.20")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.26 oz. (7.37 g)
Pull Force: 12.1 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

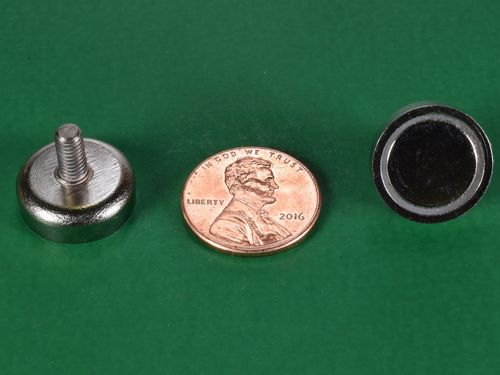

The MM-C style is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
