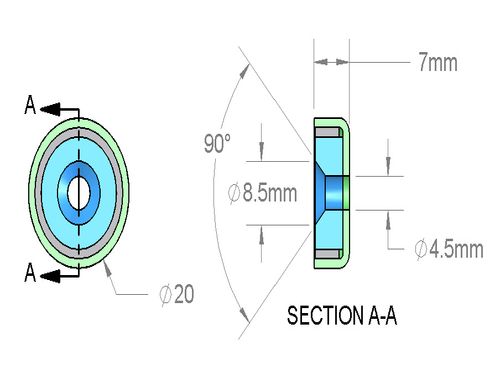

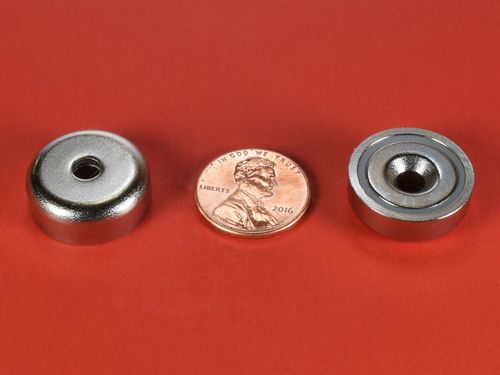

- Dimensions:
D=20mm (0.79")
d1=4.5mm (0.18") (Sized for M4 screw)
d2=8.5mm (0.33") (Tapered countersunk hole)
h=7mm (0.28") - Material: NdFeB, Grade N38
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.47 oz. (13.3 g)
- Pull Force: 16.20 lbs
- Surface Field: N/A
- Brmax: 12,600 Gauss
- BHmax: 38 MGOe
