MMS-E-X0 Specifications
-

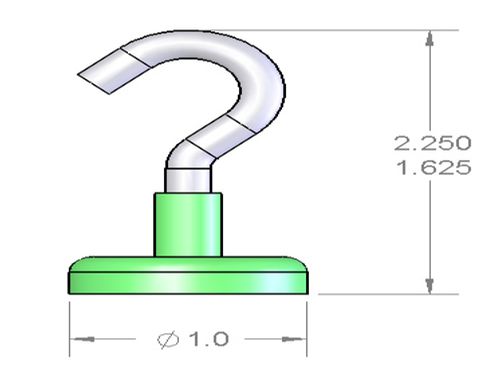

Dimensions: This shows the name of each dimension and how it is measured in the image.
-
Magnetization Direction: The direction through which the magnet is magnetized. See our Magnetization Directions page for more details.
North (outer face)
-
Size: Size is the physical dimensions of the product using the standard unit of measure inches.1 x 0.25 Inch ( Diameter x Thickness )
-
Metric Size: Metric size is the physical dimensions of the product in metric millimeters.25.4 x 6.35 mm ( Diameter x Thickness )
-
Pull Force 1: Pull force case 1 represents a magnet attracting to a thick steel plate. Learn more about Magnet Pull Force Case 1.40.64 lb (18.43 kg)
-
Grade:Hover over grades for temp info:Grade N
Min: -238°F (-150°C) Max: 176°F (80°C)
- N
- NM
- NH
- NSH
- NUH
- NEH
- NAH
N42 -
Max Operating Temp: Maximum operating temperature, also known as maximum service temperature, is the temperature at which the magnet may be exposed to continuously with no significant long-range instability or structural changes. Learn more in our Temperature and Neodymium Magnets article.176°F (80°C)
-
Material: This lists the name of the material each product is composed of.Neodymium (NdFeb)
-
BH Max: BH max is the Maximum Energy Product at the point on the B/H Curve that has the most strength, expressed in MGOe (MegaGaussOersteds). When describing the grade of a neodymium magnet, this number is commonly referred to as the "N" number, as in Grade N52 magnets. Learn more about Bh max in our glossary.42 MGOe
-
Tolerances: Dimensional tolerance specifies the allowed leeway for variations in manufacturing.±0.01 in (.25mm)
-
Coating: Most neodymium magnets are plated or coated in order to protect the magnet material from corrosion. Check out our Custom Magnets for unplated magnets and other coatings not stocked for this size magnet. Learn more about all available platings and coating in our What Magnet Coating Should I Use? article.Nickel-Copper-Nickel (Ni-Cu-Ni)
-
Weight: This is the weight of a single magnet in ounces and grams. Variety packs (with mixed sizes) show the overall weight.1.1297 oz (32.03 g)
-
Br Max: Br max is also called "Residual Flux Density" and is when the magnetic induction remaining in a saturated magnetic material after the magnetizing field has been removed. This is the point at which the hysteresis loop crosses the B axis at zero magnetizing force, and represents the maximum flux output from the given magnet material. By definition, this point occurs at zero air gap, and therefore cannot be seen in practical use of magnet materials. Learn more about Br max in our glossary.13,200 Gauss
-
Hole Size: This is the size hardware that best fits the magnet hole size.#8 screw
-
Color: The color of the coating or plating on the product.Silver

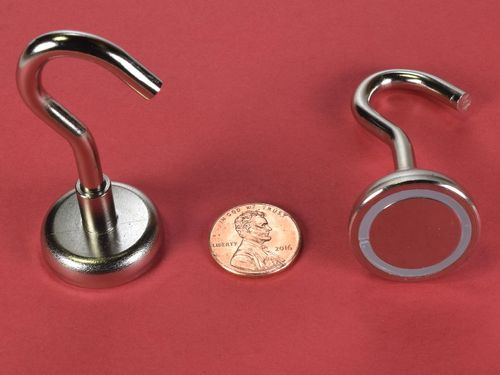

The mms-e-x0 is a powerful neodymium J-hook magnet featuring a 1" diameter
by 1/4" thick magnetic base housed in a steel mounting cup. The steel cup
helps concentrate the magnetic field toward the outer working face while
also providing additional protection for the neodymium magnet. The threaded
J-hook uses a #8 screw connection and provides an open hanging point that
allows cords, cables, tools, signs, and other accessories to be added or
removed quickly. The north pole faces outward, and the magnetic base
provides up to 40.64 lb of pull force when attached directly to a suitable
steel surface. Made from N42 grade neodymium magnet material, the mms-e-x0
provides strong magnetic performance in a compact, removable mounting design
and can handle maximum operating temperatures up to 176°F (80°C). Its
nickel-copper-nickel plating provides a smooth, durable silver finish that
helps protect the magnet from corrosion.
The mms-e-x0 is a powerful magnetic J-hook magnet with a steel mounting cup,
providing a convenient hanging point on steel and other ferrous surfaces
without drilling or permanently modifying the mounting surface. Its open
J-hook design makes it easy to hang and remove cords, cables, tools, signs,
straps, and other accessories, while the strong magnetic base allows the
hook to be quickly installed, removed, and repositioned as needed. It is a
versatile choice for workshops, warehouses, garages, job sites, vehicles,
trailers, retail displays, and industrial work areas. The mms-e-x0 can be
used for hanging signs and lightweight equipment, organizing cables and
hoses, storing tools and accessories, and creating removable hanging points
on steel beams, frames, shelving, cabinets, machinery, and other ferrous
surfaces.
Product Description
Common Applications
Product Features
MMS-E-X0 Technical Data
-
Magnetic Field: FEA magnetic field line diagram. View Chart
-
Bh Curves: Bh demagnetization curve data. View Chart
