Rubber Hook Hanging Magnet - WPH-LG Specifications
-
Magnetization Direction: The direction through which the magnet is magnetized. See our Magnetization Directions page for more details.
Alternating north and south on steel disc
-
Size: Size is the physical dimensions of the product using the standard unit of measure inches.2 11/16 in diameter x 2 in high
-
Metric Size: Metric size is the physical dimensions of the product in metric millimeters.68.26 mm diameter x 50.8 mm high
-
Grade:Hover over grades for temp info:Grade N
Min: -238°F (-150°C) Max: 176°F (80°C)
- N
- NM
- NH
- NSH
- NUH
- NEH
- NAH
N38 -
Max Operating Temp: Maximum operating temperature, also known as maximum service temperature, is the temperature at which the magnet may be exposed to continuously with no significant long-range instability or structural changes. Learn more in our Temperature and Neodymium Magnets article.176°F (80°C)
-
Material: This lists the name of the material each product is composed of.Neodymium (NdFeb)
-
BH Max: BH max is the Maximum Energy Product at the point on the B/H Curve that has the most strength, expressed in MGOe (MegaGaussOersteds). When describing the grade of a neodymium magnet, this number is commonly referred to as the "N" number, as in Grade N52 magnets. Learn more about Bh max in our glossary.38 MGOe
-
Weight: This is the weight of a single magnet in ounces and grams. Variety packs (with mixed sizes) show the overall weight.5.3433 oz (151.48 g)
-
Br Max: Br max is also called "Residual Flux Density" and is when the magnetic induction remaining in a saturated magnetic material after the magnetizing field has been removed. This is the point at which the hysteresis loop crosses the B axis at zero magnetizing force, and represents the maximum flux output from the given magnet material. By definition, this point occurs at zero air gap, and therefore cannot be seen in practical use of magnet materials. Learn more about Br max in our glossary.12,600 Gauss
-
Color: The color of the coating or plating on the product.Black
-
Assembly:NdFeB disc magnets, steel and plastic housing

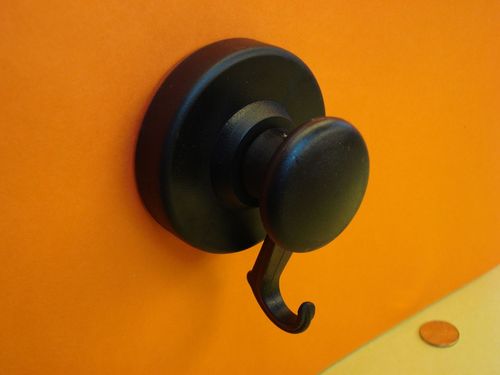

The wph-lg is a heavy-duty magnetic hanging hook measuring 2 11/16" in
diameter and 2" high. Its magnetic base uses six powerful N38 neodymium disc
magnets arranged on a steel disc and covered with a waterproof rubber
coating. It can handle temperatures up to 176°F (80°C).
The wph-lg is a heavy-duty rubber-coated magnetic hook designed for hanging
and organizing items on steel and other ferrous surfaces without drilling or
permanent mounting. Its 360° rotating hook hangs below the magnetic base to
reduce leverage and provide a secure, easily accessible hanging point, while
the rubber-coated base adds a high-grip, anti-slip surface and helps protect
finished surfaces from scratches. It is a versatile choice for homes,
offices, workshops, garages, warehouses, and other work areas. The wph-lg
can be used for hanging jackets, bags, keys, cables, tools, and other
accessories on filing cabinets, refrigerators, steel doors, shelving,
lockers, workbenches, and other ferrous surfaces. Actual holding strength
varies with the mounting surface, material thickness, and friction; see our
How Much Will a Magnet Hold?
article for more information about the factors that affect magnetic holding
force.
Product Description
Surface
Supported Load [lb]
Thick (1") steel plate, cold rolled steel
20 - 24
Steel Door, Painted
10
Refrigerator (painted steel)
7 - 8
Filing Cabinet
12 - 14
Common Applications
Product Features
