MM-F-16 Specifications
-
Dimensions: This shows the name of each dimension and how it is measured in the image.
-
Magnetization Direction: The direction through which the magnet is magnetized. See our Magnetization Directions page for more details.
North (outer face)
-
Size: Size is the physical dimensions of the product using the standard unit of measure inches.0.63 x 0.63 Inch ( Diameter x Thickness )
-
Metric Size: Metric size is the physical dimensions of the product in metric millimeters.16 x 16 mm ( Diameter x Thickness )
-
Pull Force 1: Pull force case 1 represents a magnet attracting to a thick steel plate. Learn more about Magnet Pull Force Case 1.15.6 lb (7.08 kg)
-
Grade:Hover over grades for temp info:Grade N
Min: -238°F (-150°C) Max: 176°F (80°C)
- N
- NM
- NH
- NSH
- NUH
- NEH
- NAH
N42 -
Max Operating Temp: Maximum operating temperature, also known as maximum service temperature, is the temperature at which the magnet may be exposed to continuously with no significant long-range instability or structural changes. Learn more in our Temperature and Neodymium Magnets article.176°F (80°C)
-
Material: This lists the name of the material each product is composed of.Neodymium (NdFeb)
-
BH Max: BH max is the Maximum Energy Product at the point on the B/H Curve that has the most strength, expressed in MGOe (MegaGaussOersteds). When describing the grade of a neodymium magnet, this number is commonly referred to as the "N" number, as in Grade N52 magnets. Learn more about Bh max in our glossary.42 MGOe
-
Coating: Most neodymium magnets are plated or coated in order to protect the magnet material from corrosion. Check out our Custom Magnets for unplated magnets and other coatings not stocked for this size magnet. Learn more about all available platings and coating in our What Magnet Coating Should I Use? article.Nickel-Copper-Nickel (Ni-Cu-Ni)
-
Weight: This is the weight of a single magnet in ounces and grams. Variety packs (with mixed sizes) show the overall weight.0.704 oz (19.96 g)
-
Br Max: Br max is also called "Residual Flux Density" and is when the magnetic induction remaining in a saturated magnetic material after the magnetizing field has been removed. This is the point at which the hysteresis loop crosses the B axis at zero magnetizing force, and represents the maximum flux output from the given magnet material. By definition, this point occurs at zero air gap, and therefore cannot be seen in practical use of magnet materials. Learn more about Br max in our glossary.13,200 Gauss
-
Color: The color of the coating or plating on the product.Silver

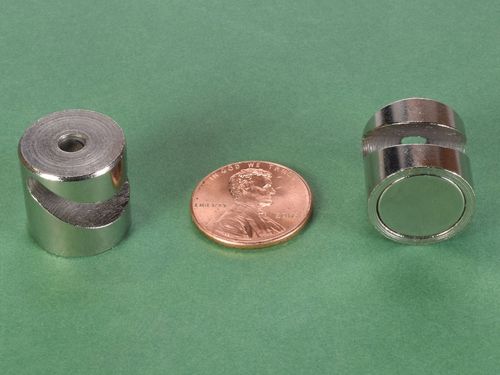

The mm-f-16 slotted hook mounting magnet measures 16 mm in diameter by 16 mm
height and features an angled hanging slot that allows items to be suspended
from both vertical and horizontal steel surfaces, along with a center hole
for string, wire, or cord. The N42 neodymium magnet is mounted in a metal
housing with the north pole facing outward and is coated with
nickel-copper-nickel plating that provides a smooth, durable surface and
helps protect the magnet from corrosion. This versatile mounting magnet has
a 15.6 lb pull force and a max operating temperature of 176°F (80°C).
The mm-f-16 slotted hook mounting magnet is a versatile hanging solution for
homes, offices, workshops, classrooms, retail spaces, and other areas with
accessible steel surfaces. Its unique design makes it useful for hanging
pictures, signs, decorations, cables, lightweight displays, tools, craft
projects, and other items from walls, shelving, cabinets, equipment, and
drop ceiling rails. It is a convenient choice for homeowners, office
workers, teachers, retailers, makers, and installers who need a removable
hanging point that can be quickly repositioned without drilling holes or
using permanent fasteners.
Product Description
Surface
Supported Load [lb]
Comments
Thick (1") steel plate, cold rolled steel
3-3.5
Good pull
Steel door, Painted
6-7
Strong pull
Refrigerator (painted steel)
2
Good pull
Filing Cabinet
6.5
Strong pull
