> MM-C-25 - Neodymium Rare Earth Male Stud Pot/Cup Mounting Magnet

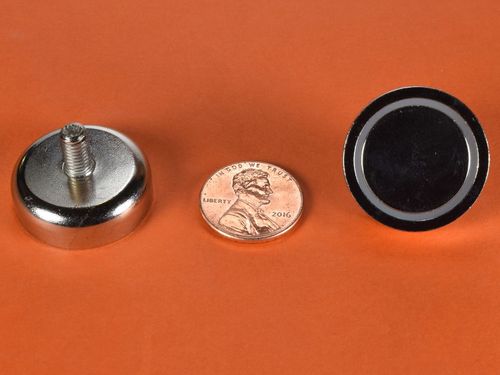

25 x 8 mm Neodymium Rare Earth Male Stud Pot/Cup Mounting Magnet N38 PN: MM-C-25

25 x 8 mm Neodymium Rare Earth Male Stud Pot/Cup Mounting Magnet N38

25 x 8 mm Neodymium Rare Earth Male Stud Pot/Cup Mounting Magnet N38 --thumbnail-1

25 x 8 mm Neodymium Rare Earth Male Stud Pot/Cup Mounting Magnet N38 --thumbnail-2

$5.04

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$5.04	1-4
$4.93	5-9	2%
$4.81	10-24	5%
$4.70	25-49	7%
$4.60	50-99	9%
$4.48	100-249	11%
$4.37	250-499	13%
$4.26	500-999	15%
$4.14	1000-2499	18%
$4.03	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

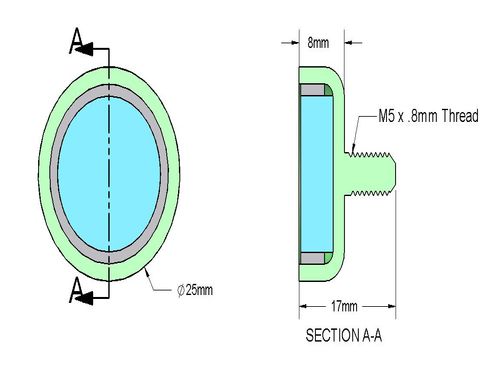

Dimensions:
    D=25mm (0.98")
    M=5mm (0.20") (M5 Coarse Male threaded stud)
    H=17mm (0.67")
    h=8mm (0.32")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.92 oz. (26.1 g)
Pull Force: 48.5 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

The MM-C style is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
