> DF03 - Neodymium Disc Magnet

DF03 - Neodymium Disc Magnet - 15/16" Dia x 3/32" Thi

$2.87

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.87	1-4
$2.81	5-9	2%
$2.74	10-24	5%
$2.68	25-49	7%
$2.62	50-99	9%
$2.54	100-249	11%
$2.48	250-499	14%
$2.42	500-999	16%
$2.35	1000-2499	18%
$2.29	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 15/16" dia. x 3/32" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.281 oz. (7.95 g)
Pull Force, Case 1: 8.78 lbs
Pull Force, Case 2: 50.78 lbs
Surface Field: 1294 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

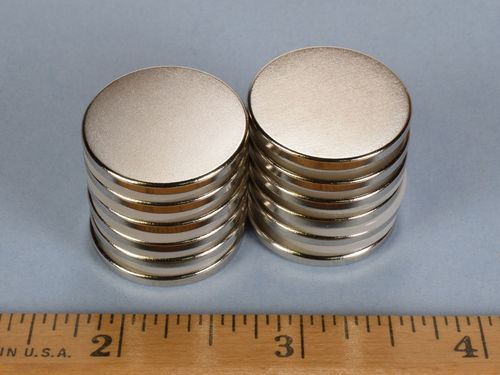

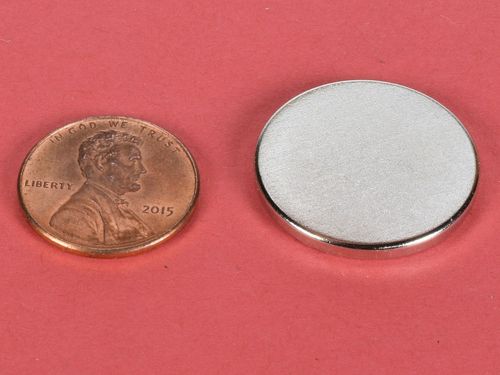

The DF03 is a 15/16" diameter disc magnet with a 3/32" thickness. You would be hard pressed to find this very rare size anywhere but K&J Magnetics! Perfect for very specific product designs or just general, everyday use.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
