![Magnetization direction](/images/magdir/adisc-3.png)

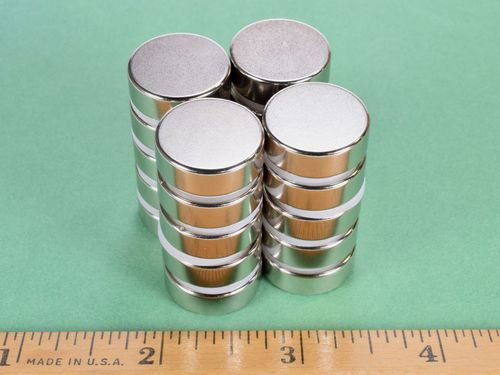

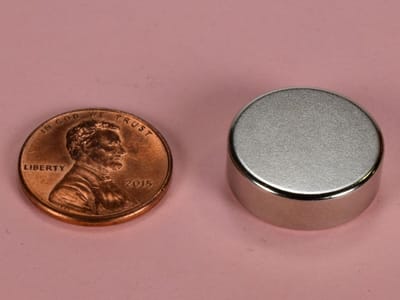

- Dimensions: 3/4" dia. x 1/4" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N52
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.479 oz. (13.6 g)
- Pull Force, Case 1: 23.30 lbs
- Pull Force, Case 2: 44.82 lbs
- Surface Field: 4105 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 14,800 Gauss
- BHmax: 52 MGOe
This size is also available in grade N42 as part number DC4 and in High Temp grade N42SH as part number DC4SH .
![]() |
Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
![]() |
Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
![]() |
Pull Force, Case 3 vs. distance: Magnet to Magnet. |
![]() |
Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
![]() |
Click this link for a depiction of the magnetic field. |
![]() |
View B-H curves for this magnet. |
![]() |
Click this link to download a PDF Specification Sheet. |
![]() |
Click this link to download a PDF drawing of this product. |
![]() |
Click this link to download a Certificate of Compliance for this product. |
![]() |
Click this link to download a RoHS Statement of Compliance for this product. |
![]() |
Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
![]() |
Click this link to download a Conflict Minerals Reporting Template (CMRT). |
![]() |
Click this link to download a Certificate of Origin for this product. |
![]() |
Click this link for a REACH compliance statement. |
![]() |
Click this link to download a .STEP file (3D model). |
![]() |
Click this link to download an .IGS file (3D model). |
