> D84PC-ORA - Neodymium Rare Earth Plastic Coated Disc Magnet

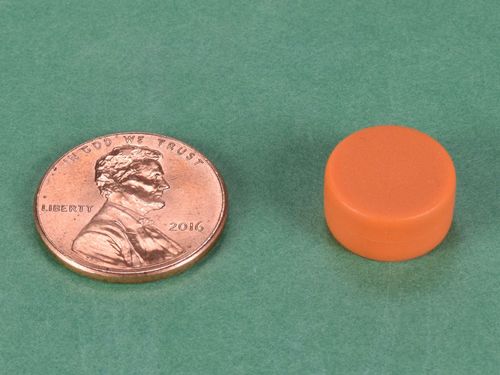

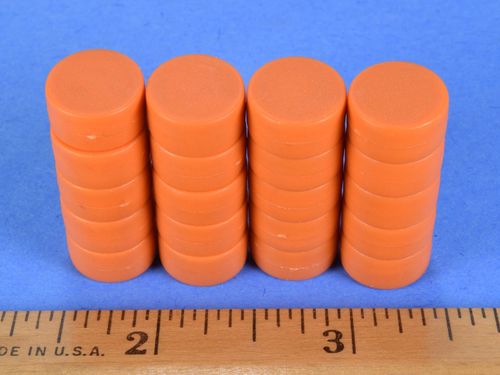

1/2 x 1/4 Inch Neodymium Rare Earth Plastic Coated Disc Magnet N42 PN: D84PC-ORA

d84pc-ora-neodymium-rare-earth-plastic-coated-disc-magnet

d84pc-ora-neodymium-rare-earth-plastic-coated-disc-magnet--thumbnail-1

d84pc-ora-neodymium-rare-earth-plastic-coated-disc-magnet--thumbnail-2

$2.03

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.03	1-9
$1.98	10-24	2%
$1.93	25-49	5%
$1.90	50-99	6%
$1.85	100-249	9%
$1.80	250-499	11%
$1.75	500-999	14%
$1.72	1000-2499	15%
$1.67	2500-4999	18%
$1.62	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads
Video

Dimensions: 1/2" dia. x 1/4" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni-Plastic
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.198 oz. (5.61 g)
Pull Force, Case 1: 3.45 lbs
Pull Force, Case 2: 5.57 lbs
Surface Field: 3775 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

These great magnets are coated with a durable layer of plastic. The 1/2" x 1/4" dimensions are the finished dimensions of the plastic coating. These discs can be slammed together many times without damage. They won't mark or scratch surfaces they come in contact with. They are also completely weatherproof. Please note: Slight color variation may occur from order to order.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
