1/2 x 1/4 Inch Neodymium Rare Earth Ring Magnet N52 PN: R844-N52

1/2 x 1/4 Inch Neodymium Rare Earth Ring Magnet N52

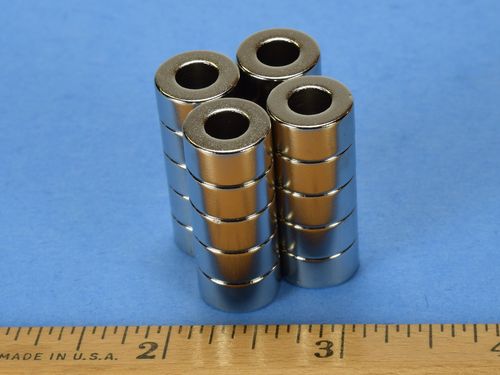

1/2 x 1/4 Inch Neodymium Rare Earth Ring Magnet N52 --thumbnail-1

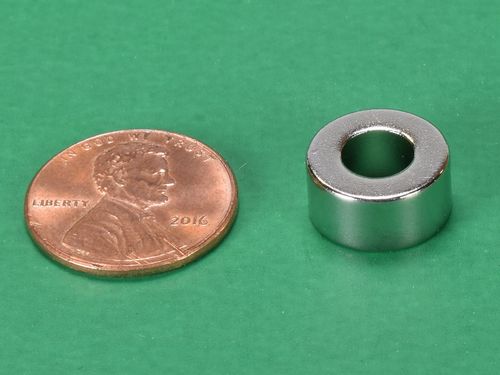

1/2 x 1/4 Inch Neodymium Rare Earth Ring Magnet N52 --thumbnail-2

$2.16

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.16	1-9
$2.11	10-24	2%
$2.06	25-49	5%
$2.02	50-99	6%
$1.97	100-249	9%
$1.92	250-499	11%
$1.87	500-999	13%
$1.82	1000-2499	16%
$1.78	2500-4999	18%
$1.73	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads
Video

Magnetization direction

Dimensions: 1/2" od x 1/4" id x 1/4" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.16 oz. (4.53 g)
Pull Force, Case 1: 10.80 lbs
Pull Force, Case 2: 15.35 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 52 MGOe

The R844 is an outstanding ring magnet with a million uses! It's sized just like the R844, but made in the more powerful grade N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
