> R622 - Neodymium Rare Earth Ring Magnet

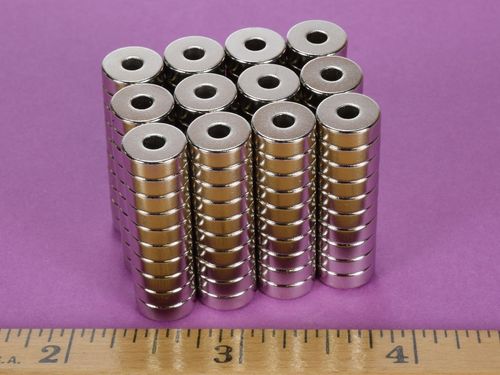

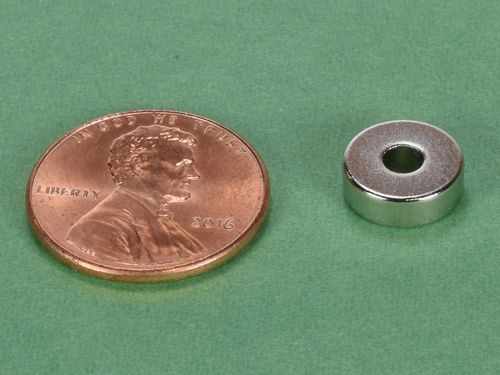

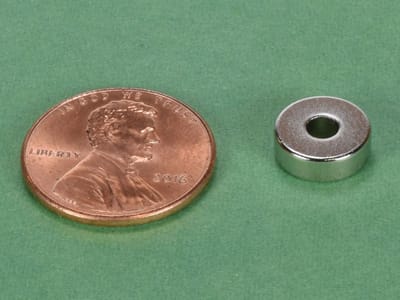

3/8 x 1/8 Inch Neodymium Rare Earth Ring Magnet N42 PN: R622

r622-neodymium-rare-earth-ring-magnet--thumbnail-1

r622-neodymium-rare-earth-ring-magnet--thumbnail-2

$0.71

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.71	1-24
$0.70	25-49	1%
$0.67	50-99	6%
$0.66	100-249	7%
$0.65	250-499	8%
$0.62	500-999	13%
$0.61	1000-2499	14%
$0.60	2500-4999	15%
$0.58	5000-9999	18%
$0.56	10000-24999	21%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 3/8" od x 1/8" id x 1/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0532 oz. (1.51 g)
Pull Force, Case 1: 4.05 lbs
Pull Force, Case 2: 8.18 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The R622 is a nice and affordable little ring magnet. Great for anything you would use a small ring magnet for, such as tying to a string to pick up or hang metal objects, science demonstrations and mounting with a screw.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
