5/8 x 1/8 Inch Neodymium Rare Earth Ring Magnet N42 PN: RA22

• Dimensions: 5/8" od x 1/8" id x 1/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.159 oz. (4.52 g)
• Pull Force, Case 1: 8.02 lbs
• Pull Force, Case 2: 25.17 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

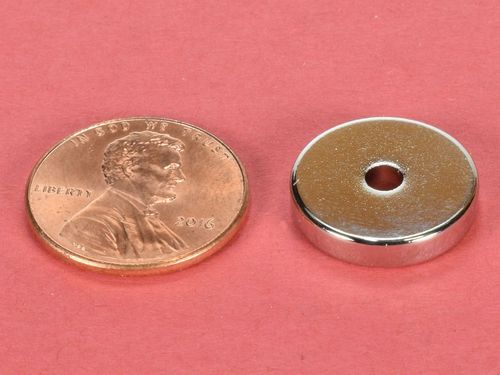

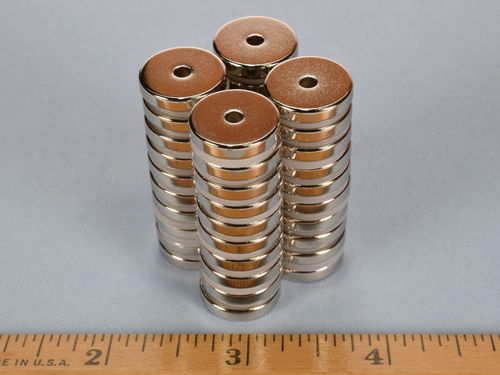

The RA22 is a strong and versatile ring magnet, similar in size to our RA22CS line, only without the countersunk hole.  Perfectly sized for a wide range of applications.
