![Magnetization direction](/images/magdir/RxDCS.png)

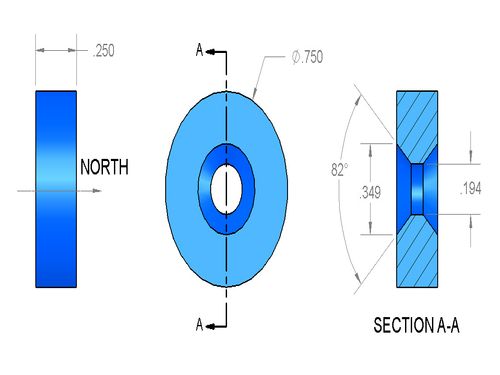

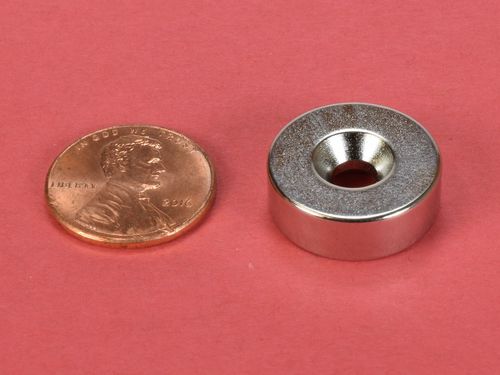

- Dimensions: 3/4" od x 1/4" thick w/ holes to accept #8 screw
- Tolerances: ±0.004" x ±0.004" x ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.424 oz. (12 g)
- Pull Force, Case 1: 16.39 lbs
- Pull Force, Case 2: 29.45 lbs
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe
See our full line of Countersunk Magnets.
![]() |
Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
![]() |
Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
![]() |
Pull Force, Case 3 vs. distance: Magnet to Magnet. |
![]() |
Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
![]() |
View B-H curves for this magnet. |
![]() |
Click this link to download a PDF Specification Sheet. |
![]() |
Click this link to download a PDF drawing of this product. |
![]() |
Click this link to download a Certificate of Compliance for this product. |
![]() |
Click this link to download a RoHS Statement of Compliance for this product. |
![]() |
Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
![]() |
Click this link to download a Conflict Minerals Reporting Template (CMRT). |
![]() |
Click this link to download a Certificate of Origin for this product. |
![]() |
Click this link for a REACH compliance statement. |
![]() |
Click this link to download a .STEP file (3D model). |
![]() |
Click this link to download an .IGS file (3D model). |
