7/8 x 1/8 Inch Neodymium Rare Earth Countersunk Ring Magnet N42 (1 Pair) PN: RE22CS-P

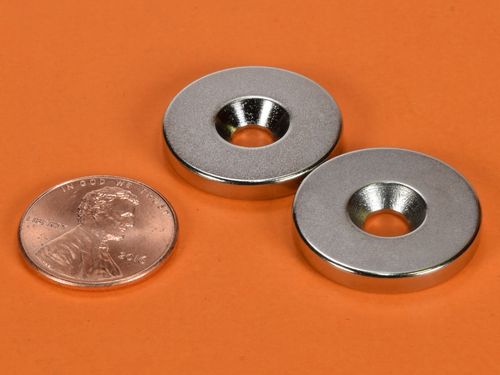

7/8 x 1/8 Inch Neodymium Rare Earth Countersunk Ring Magnet N42 (1 Pair)
7/8 x 1/8 Inch Neodymium Rare Earth Countersunk Ring Magnet N42 (1 Pair)--thumbnail-17/8 x 1/8 Inch Neodymium Rare Earth Countersunk Ring Magnet N42 (1 Pair)--thumbnail-2
$6.05
-
+
Buy more, Save more!

Quantity based discounts

Price ea.QtyDiscount
$6.05 1-4
$5.925-92%
$5.7810-244%
$5.6425-497%
$5.5150-999%
$5.38100-24911%
$5.24250-49913%
$5.10500-99916%
$4.971000-249918%
$4.842500-499920%
Email us for even bigger discounts on higher order quantities
  • product description icon   Description
  • product technical icon   Technical
  • product download icon   Downloads
Magnetization directionThese are 7/8" diameter x 1/8" thick countersunk ring magnets sized to accept a #8 countersunk screw.  Sold by the pair as our part number RE22CS-P. One will have the north pole on the countersink side and one will have the south pole on the countersink side, so they will attract each other when they are screwed in place.

These countersunk rings can be used for a wide range of applications including door closures and tool hangers.

Magnet pull force case 1 data chart icon linkPull Force, Case 1 vs. distance: Magnet to a Steel Plate.
Magnet pull force case 2 data chart icon linkPull Force, Case 2 vs. distance: Between 2 Steel Plates.
Magnet pull force case 3 data chart icon linkPull Force, Case 3 vs. distance: Magnet to Magnet.
Magnet pull force case 4 data chart icon linkPull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
Bh demagnetization curves data chart icon linkView B-H curves for this magnet.

Product spec sheet pdf download icon linkClick this link to download a PDF Specification Sheet.
Product drawing pdf download icon linkClick this link to download a PDF drawing of this product.
Product certificate of compliance pdf download icon linkClick this link to download a Certificate of Compliance for this product.
Product rohs pdf download icon linkClick this link to download a RoHS Statement of Compliance for this product.
Product sds safety data sheet pdf download icon linkClick this link to download a Material Safety Data Sheet (MSDS) for this product.
Product conflict minerals reporting template pdf download icon linkClick this link to download a Conflict Minerals Reporting Template (CMRT).
Product certificate of origin pdf download icon linkClick this link to download a Certificate of Origin for this product.
REACHClick this link for a REACH compliance statement.
Product step drawing download icon linkClick this link to download a .STEP file (3D model).
Product igs drawing download icon linkClick this link to download an .IGS file (3D model).
