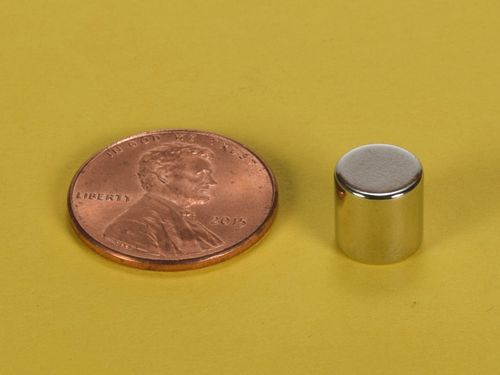

5/16 x 5/16 Inch Neodymium Rare Earth Cylinder/Rod Magnet N42 PN: D55

• Dimensions: 5/16" dia. x 5/16" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.104 oz. (2.95 g)
• Pull Force, Case 1: 5.44 lbs
• Pull Force, Case 2: 6.49 lbs
• Surface Field: 5903 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

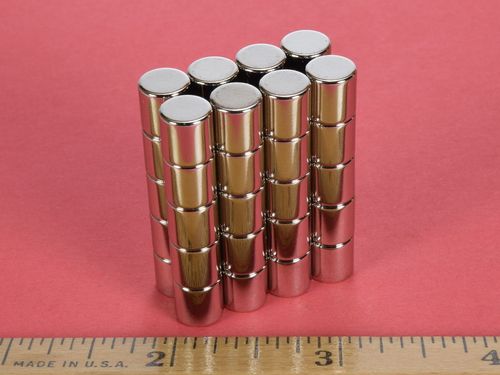

This strong size is great for when you need a step up in strength from the 1/4" magnets. They are manageable, but can pinch slightly if they are not handled carefully. These cylinders (a.k.a. "rods") make great, high-power fridge and bulletin board magnets. Try some today!

This size is also available in grade N52 as part number D55-N52 .

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
