> DH14 - Neodymium Cylinder Magnet

DH14 - Neodymium Cylinder Magnet - 1/10" Dia x 1/4" Thi

dh14-neodymium-cylinder-magnet--thumbnail-1

dh14-neodymium-cylinder-magnet--thumbnail-2

$0.28

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.28	1-49
$0.26	50-249	7%
$0.25	250-999	11%
$0.24	1000-4999	14%
$0.23	5000-24999	18%
$0.22	25000-49999	21%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1/10" dia. x 1/4" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.00851 oz. (0.241 g)
Pull Force, Case 1: 0.57 lbs
Pull Force, Case 2: 0.59 lbs
Surface Field: 6472 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

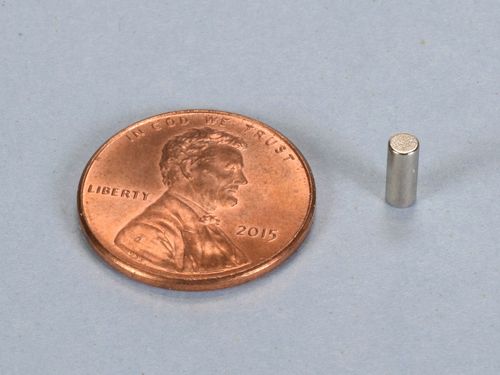

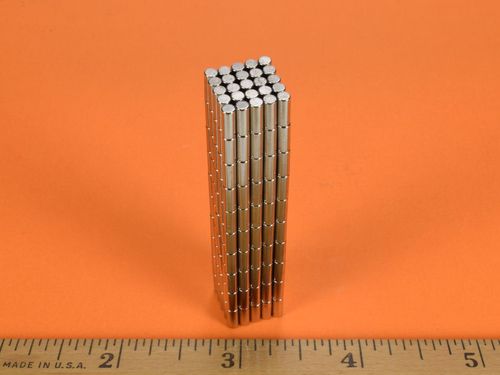

The DH14 is one of our many new additions featuring a true 0.100" (+/-0.004") diameter. These little magnets are in high demand since they are perfectly sized for use in today's ever-shrinking electronics, sensors and various medical devices. It's doubtful you'll find these unique sizes anywhere but K&J Magnetics!

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
