2/10 x 1/32 Inch Neodymium Rare Earth Disc Magnet N42 PN: DH201

• Dimensions: 2/10" dia. x 1/32" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.00426 oz. (0.121 g)
• Pull Force, Case 1: 0.39 lbs
• Pull Force, Case 2: 2.22 lbs
• Surface Field: 1969 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

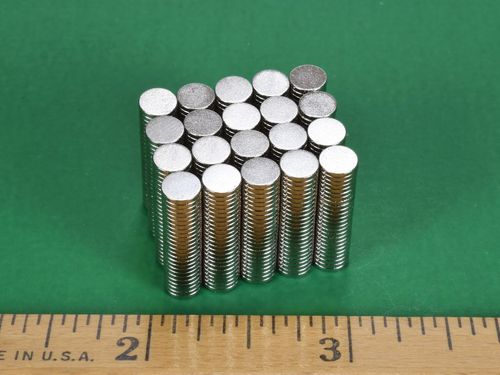

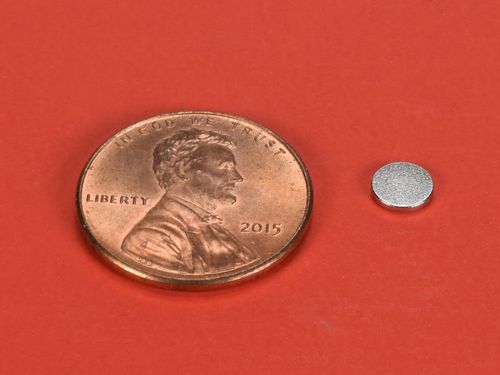

These tiny little magnets are an interesting size. A true 0.200" (+/-0.004") diameter that is unlikely to be found anywhere else! Small and inexpensive, you can buy a bunch for a low price. Great for hanging photos, as one or two of them will hold a picture firmly to a metal surface, and they are virtually invisible. They are also perfectly sized for use in small electronic devices and sensors.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
