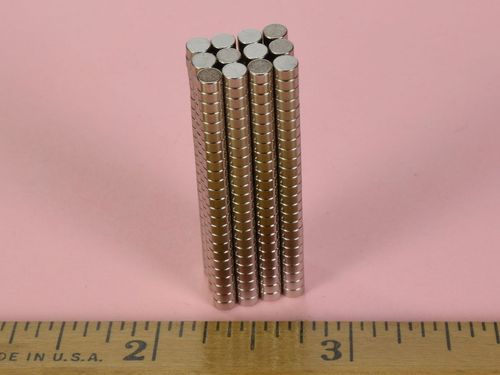

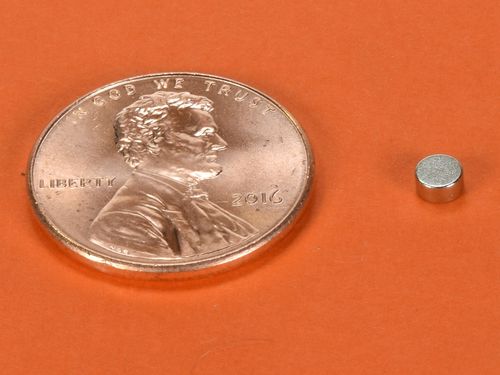

D21SH - Neodymium High Temp Disc Magnet

• Dimensions: 1/8" dia. x 1/16" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42SH
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.00333 oz. (0.0943 g)
• Pull Force, Case 1: 0.45 lbs
• Pull Force, Case 2: 0.84 lbs
• Surface Field: 4667 Gauss
• Max Operating Temp: 302ºF (150ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

Here we offer our very popular 1/8" diameter x 1/16" disc magnets in grade N42SH.  The SH grades have a maximum operating temperature of 302ºF (150ºC), as compared to standard N grades that have a maximum operating temperature of 176ºF (80ºC).  These are great for applications where you need to place a small magnet in a high temperature environment.

This size is also available in grade N52 with black nickel plating as part number D21B-N52 and in grade N42 with silver nickel plating as part number D21.

These magnets are sold in packs of 10.  Order a quantity of 1 and get 10 magnets.  Order a quantity of 2 and get 20 magnets.  Order a quantity of 3 and get 30...

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
