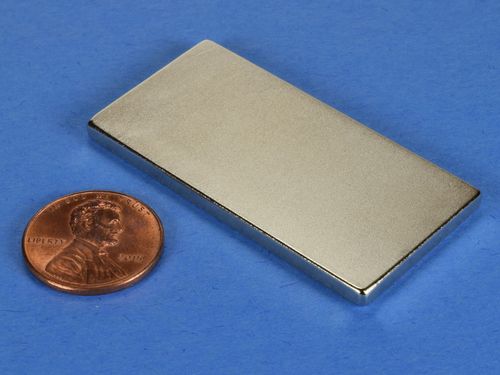

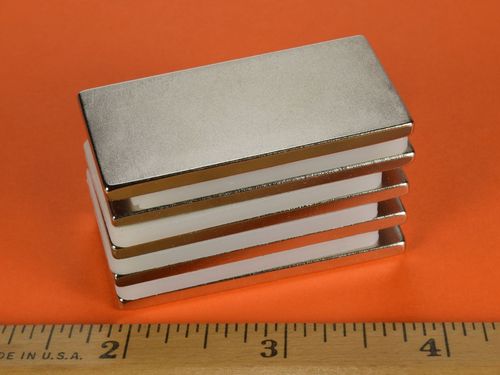

2 x 1 x 1/8 Inch Neodymium Rare Earth High Temp Block Magnet N42SH PN: BY0X02SH

• Dimensions: 2" x 1" x 1/8" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42SH
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 1.08 oz. (30.73 g)
• Pull Force, Case 1: 21.76 lbs
• Pull Force, Case 2: 132.3 lbs
• Surface Field: 1152 Gauss
• Max Operating Temp: 302ºF (150ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

Large and powerful blocks in grade N42SH high temperature neodymium.  The SH grades have a maximum operating temperature of 302ºF (150ºC), as compared to standard N grades that have a maximum operating temperature of 176ºF (80ºC).  These are great for applications where you need to place a large, flat magnet in a high temperature environment.

This size is also available in grade standard N42 as part number BY0X02.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
