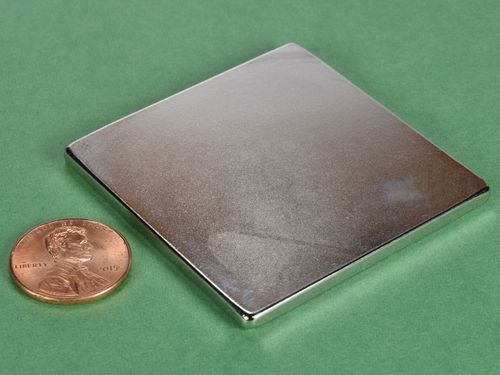

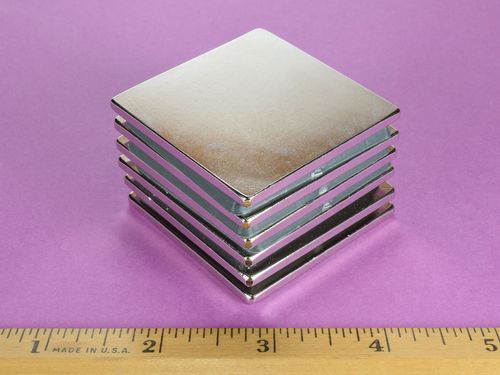

2 x 2 x 1/8 Inch Neodymium Rare Earth Block Magnet N42 PN: BY0Y02

• Dimensions: 2" x 2" x 1/8" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 2.17 oz. (61.46 g)
• Pull Force, Case 1: 32.26 lbs
• Pull Force, Case 2: 228.3 lbs
• Surface Field: 738 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

This large, thin magnet is has the potential to be very powerful under the proper circumstances. They also need to be handled with great care, they could crack or break if not placed carefully. Hint: Slide them like you're dealing cards.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
