> BX8X81 - Neodymium Rare Earth Block Magnet

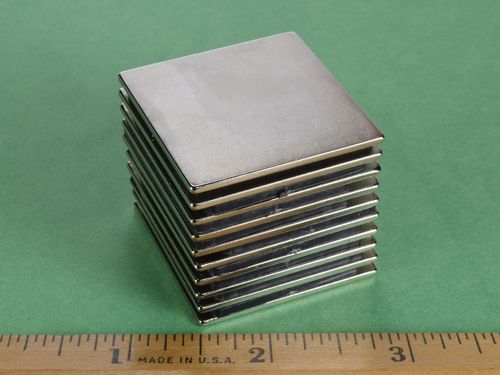

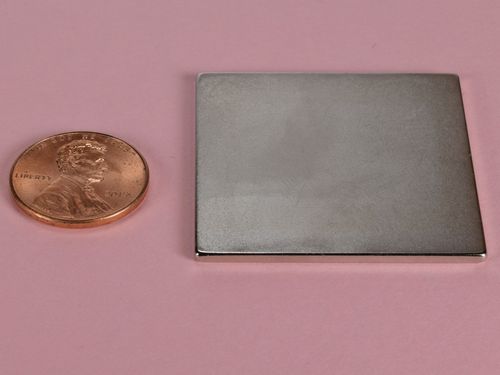

1 1/2 x 1 1/2 x 1/16 Inch Neodymium Rare Earth Block Magnet N42 PN: BX8X81

bx8x81-neodymium-rare-earth-block-magnet

bx8x81-neodymium-rare-earth-block-magnet--thumbnail-1

bx8x81-neodymium-rare-earth-block-magnet--thumbnail-2

$6.50

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$6.50	1-4
$6.36	5-9	2%
$6.22	10-24	4%
$6.07	25-49	7%
$5.93	50-99	9%
$5.78	100-249	11%
$5.64	250-499	13%
$5.50	500-999	15%
$5.35	1000-2499	18%
$5.21	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1 1/2" x 1 1/2" x 1/16" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.609 oz. (17.29 g)
Pull Force, Case 1: 7.91 lbs
Pull Force, Case 2: 137.9 lbs
Surface Field: 494 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

With a large contact area and a low profile, the BX8X81 is great for getting into tight spots where a lot of magnetic power is needed. Easy enough to slide into place, but tough to pry off a metal surface.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
