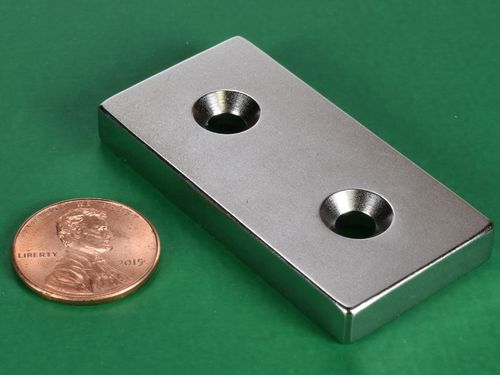

2 x 1 x 1/4 Inch Neodymium Rare Earth Countersunk Block Magnet N42 (#8 screw) PN: BY0X04DCS

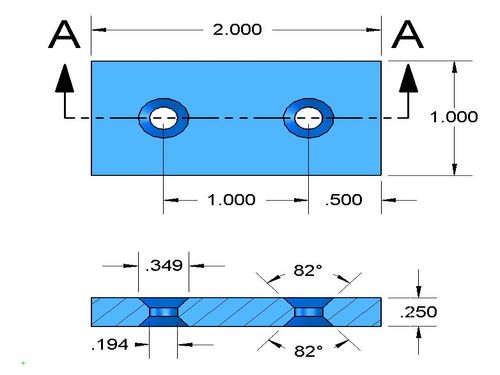

• Dimensions: 2" x 1" x 1/4" thick w/ holes to accept #8 screws
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 2.01 oz. (57.06 g)
• Pull Force, Case 1: 34.34 lbs
• Pull Force, Case 2: 129.6 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The BY0X04DCS is a powerful, 2 inch long magnet with nearly limitless possibilities. Two double countersunk holes on either side make this strong block perfect for attaching to wood, aluminum, stainless steel and plastic surfaces. Great for many applications that may not have otherwise been able to harness the incredible strength of Neodymium Magnets!

See our full line of Countersunk Magnets.

This size is also available without the countersunk holes, in grade N42 as part number BY0X04 and in grade N52 (no holes) as part number BY0X04-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
