1 1/2 x 3/8 Inch Neodymium Rare Earth Stainless Steel Pot Magnet N42 (#10 screw) MMWR-B-X8

MMWR-B-X8 Specifications

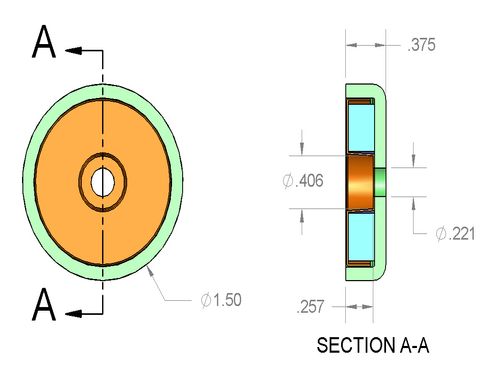

• Dimensions: This shows the name of each dimension and how it is measured in the image.
• Magnetization Direction: The direction through which the magnet is magnetized. See our Magnetization Directions page for more details.
  North (outer face)
• Size: Size is the physical dimensions of the product using the standard unit of measure inches.
  1.5 x 0.375 Inch ( Diameter x Thickness )
• Metric Size: Metric size is the physical dimensions of the product in metric millimeters.
  38.1 x 9.52 mm ( Diameter x Thickness )
• Pull Force 1: Pull force case 1 represents a magnet attracting to a thick steel plate. Learn more about Magnet Pull Force Case 1.
  54 lb (24.49 kg)
• Grade:

  Grade N

  Min: -238°F (-150°C) Max: 176°F (80°C)

  Hover over grades for temp info:

  • N
  • NM
  • NH
  • NSH
  • NUH
  • NEH
  • NAH
  N42
• Max Operating Temp: Maximum operating temperature, also known as maximum service temperature, is the temperature at which the magnet may be exposed to continuously with no significant long-range instability or structural changes. Learn more in our Temperature and Neodymium Magnets article.
  176°F (80°C)
• Material: This lists the name of the material each product is composed of.
  Neodymium (NdFeb)
• BH Max: BH max is the Maximum Energy Product at the point on the B/H Curve that has the most strength, expressed in MGOe (MegaGaussOersteds). When describing the grade of a neodymium magnet, this number is commonly referred to as the "N" number, as in Grade N52 magnets. Learn more about Bh max in our glossary.
  42 MGOe
• Tolerances: Dimensional tolerance specifies the allowed leeway for variations in manufacturing.
  ±0.01 in (.25mm)
• Weight: This is the weight of a single magnet in ounces and grams.
  2.304 oz (65.32 g)
• Br Max: Br max is also called "Residual Flux Density" and is when the magnetic induction remaining in a saturated magnetic material after the magnetizing field has been removed. This is the point at which the hysteresis loop crosses the B axis at zero magnetizing force, and represents the maximum flux output from the given magnet material. By definition, this point occurs at zero air gap, and therefore cannot be seen in practical use of magnet materials. Learn more about Br max in our glossary.
  13,200 Gauss
• Hole Size: This is the size hardware that best fits the magnet hole size.
  #10 screw
• Color: The color of the coating or plating on the product.
  Silver

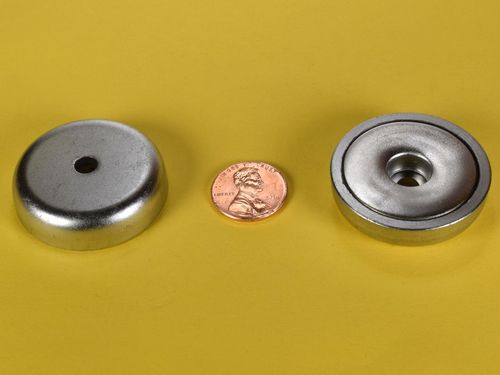

This stainless steel mounting magnet is a new, water resistant design available exclusively at K&J Magnetics.  It allows neodymium mounting magnets to be used in wet environments, where occasional contact with moisture is expected.

Most of our other Mounting Magnets are made with nickel plated magnets that are exposed, with a nickel plated steel cup that the magnet sits in.  In outdoor use where magnets can occasionally get wet, both the magnet and the steel cup can corrode or rust.  The exposed portions of this sealed magnet are all stainless steel, which protects the internal magnet from corrosion.

While not quite as magnetically strong as non-stainless mounting magnets like the MMS-B-X8, this product is a great, water resistant solution.

Note that the appearance of these magnets is not as shiny as our nickel plated products.
