> MMS-A-X4 - Neodymium Rare Earth Countersunk Mounting Magnet

MMS-A-X4 - Neodymium Rare Earth Countersunk Mounting Magnet - 1 1/4" Dia 3/8 " Thi

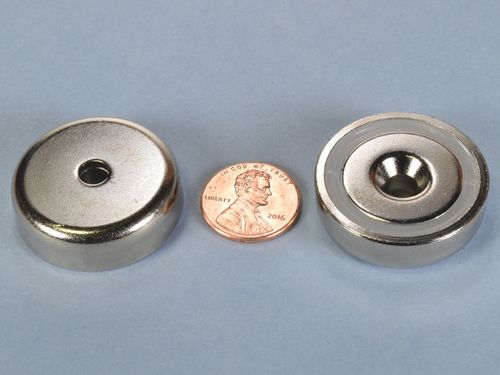

mms-a-x4-neodymium-rare-earth-countersunk-mounting-magnet--thumbnail-1

mms-a-x4-neodymium-rare-earth-countersunk-mounting-magnet--thumbnail-2

$7.30

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$7.30	1
$7.13	2-4	2%
$6.97	5-9	5%
$6.80	10-24	7%
$6.65	25-49	9%
$6.48	50-99	11%
$6.32	100-249	13%
$6.16	250-499	16%
$6.00	500-999	18%
$5.83	1000-2499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

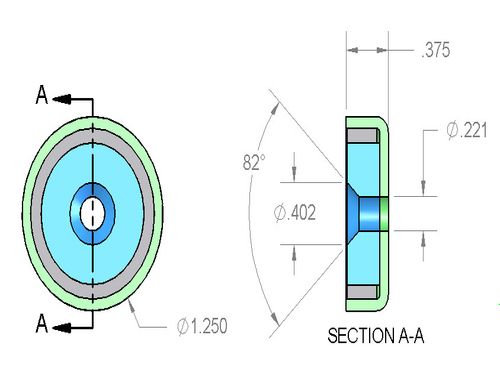

Dimensions:
    Diameter= 1 1/4" (1.25")
    Hole Size= #10 Screw
    Height= 3/8" (0.375")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.63 oz. (46.26 g)
Pull Force: 58.27 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The MMS-A style is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
