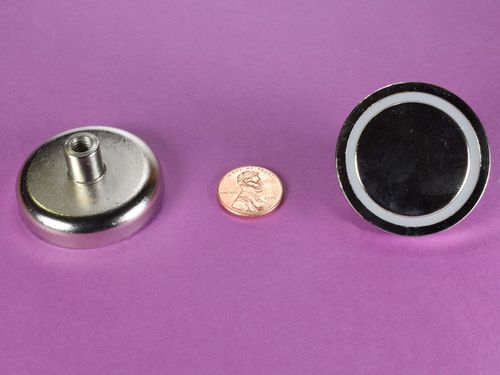

- Dimensions:

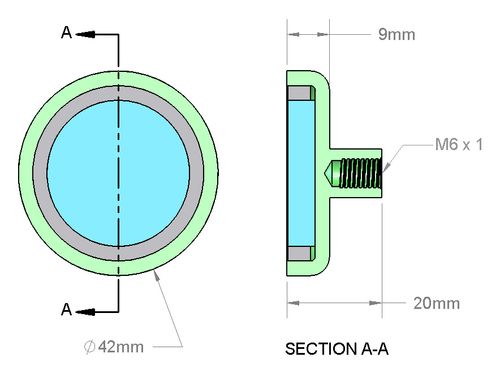

D=42mm (1.65")
d=6mm (0.32") (M6 Coarse Female threaded stud)
H=20mm (0.79")
h=9mm (0.36")
M=10mm (0.39") - Material: NdFeB, Grade N38
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 3.44 oz. (97.5 g)
- Pull Force: 149.9 lbs
- Surface Field: N/A
- Brmax: 12,600 Gauss
- BHmax: 38 MGOe
