> MM-D-48 - Neodymium Female Stud Mounting Magnet

MM-D-48 - Neodymium Female Stud Mounting Magnet - 48mm Dia 11mm Thi

mm-d-48-neodymium-female-stud-mounting-magnet

mm-d-48-neodymium-female-stud-mounting-magnet--thumbnail-1

mm-d-48-neodymium-female-stud-mounting-magnet--thumbnail-2

$20.14

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$20.14	1
$19.69	2	2%
$19.25	3-4	4%
$18.79	5-9	7%
$18.35	10-24	9%
$17.90	25-49	11%
$17.46	50-99	13%
$17.00	100-249	16%
$16.56	250-499	18%
$16.12	500-999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

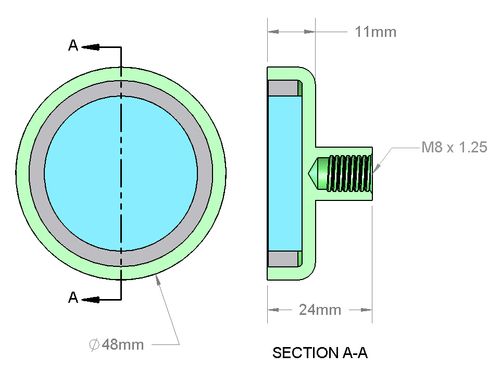

Dimensions:
    D=48mm (1.89")
    d=8mm (0.31") (M8 Coarse Female threaded stud)
    H=24mm (0.94")
    h=11mm (0.43")
    M=12mm (0.47")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 4.48 oz. (127 g)
Pull Force: 178.6 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

The MM-D style is a flat mounting magnet with a female threaded shaft permanently attached. If you need a magnet to attach to something threaded, this is what you need.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
