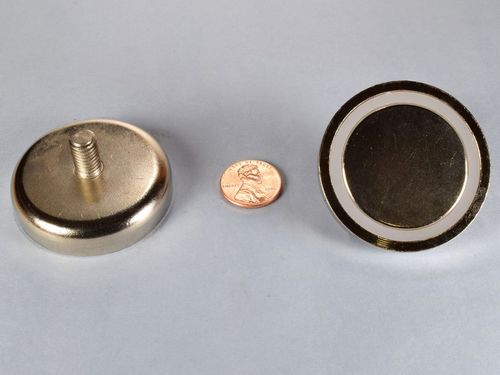

48 x 11 mm Neodymium Rare Earth Male Stud Pot/Cup Mounting Magnet N38 PN: MM-C-48

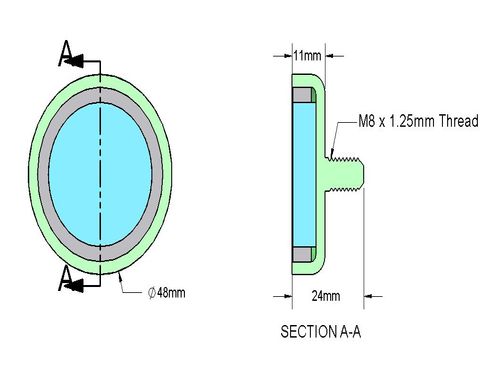

• Dimensions:
      D=48mm (1.89")
      M=8mm (0.31") (M8 Coarse Male threaded stud)
      H=24mm (0.94")
      h=11mm (0.43")
• Material: NdFeB, Grade N38
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 4.59 oz. (130 g)
• Pull Force: 179.0 lbs
• Surface Field: N/A
• Brmax: 12,600 Gauss
• BHmax: 38 MGOe

The MM-C style is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.
