> MMS-H-Y0 - Neodymium Rare Earth Internal Thread Mounting Magnet

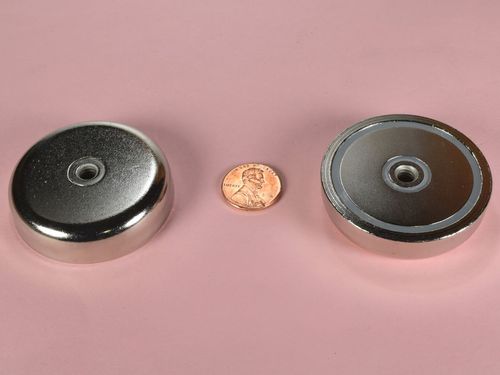

2 x 1/2 Inch Neodymium Rare Earth Internal Thread Mounting Magnet N42 PN: MMS-H-Y0

mms-h-y0-neodymium-rare-earth-internal-thread-mounting-magnet

mms-h-y0-neodymium-rare-earth-internal-thread-mounting-magnet--thumbnail-1

mms-h-y0-neodymium-rare-earth-internal-thread-mounting-magnet--thumbnail-2

$24.37

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$24.37	1
$23.83	2	2%
$23.29	3-4	4%
$22.75	5-9	7%
$22.21	10-24	9%
$21.66	25-49	11%
$21.12	50-99	13%
$20.58	100-249	16%
$20.04	250-499	18%
$19.50	500-999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

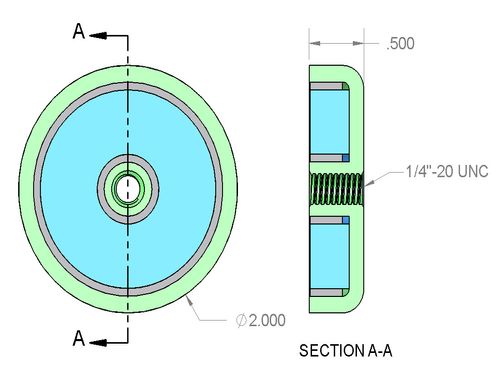

Dimensions:
    Diameter = 2" (2.00")
    Internal Thread Size = 1/4"-20 UNC 2B
    Height = 1/2" (0.5")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 6.27 oz. (177.7 g)
Pull Force: 190.0 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The MMS-H style is a flat mounting magnet with an internal thread in the center. These unique mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
