2 x 1/2 Inch Neodymium Rare Earth Male Stud Pot/Cup Mounting Magnet N42 PN: MMS-C-Y0

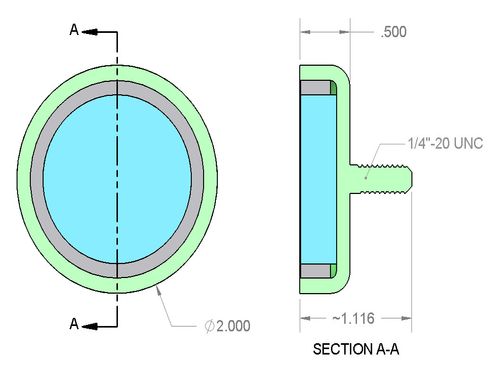

• Dimensions:
      Diameter = 2" (2.00")
      Threaded Male Stud = 1/4"-20 UNC 2A
      Height = 1/2" (0.50")
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 6.27 oz. (176.5 g)
• Pull Force: 173.0 lbs
• Surface Field: N/A
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

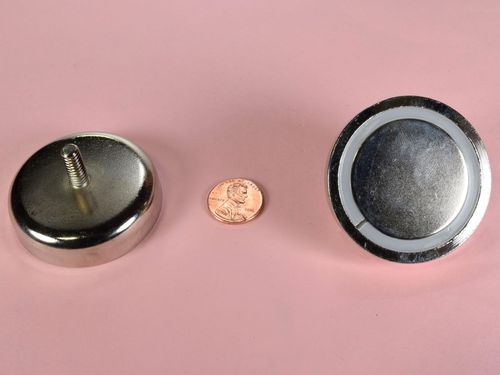

The MMS-C style is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.

We like this magnet, paired with a MMS-D-Y0, for the popular hobby of magnet fishing.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).

   Download the free Adobe Acrobat Reader
